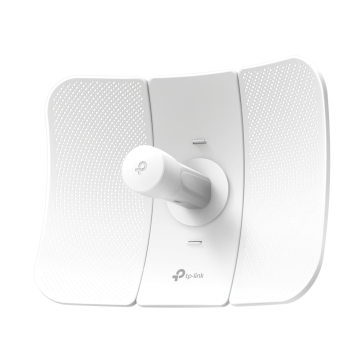

TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE

TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE Specifications:

HARDWARE FEATURES
------------------------------------------------------------------------------
Processor: Qualcomm 560MHz CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM,8MB Flash

Interface:
- 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
- 1 Reset Button

Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

Voltage range: 16-27V DC

Dimensions ( W x D x H ): 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)

Antenna Gain: 23 dBi

Antenna Beamwidth: 7°(Azimuth), 10°(Elevation)

Protection:
15 KV ESD Protection
6 KV Lightning Protection

Enclosure
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
------------------------------------------------------------------------------
Wireless Standards: IEEE 802.11a/n

Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds:
Up to 150Mbps (40MHz,Dynamic)
Up to 72.2Mbps (20MHz,Dynamic)
Up to 36.1Mbps (10MHz,Dynamic)
Up to 18.05Mbps (5MHz,Dynamic)

Frequency: 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power: Max. 23dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
------------------------------------------------------------------------------
IPv6: Yes

Network Configuration :
WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

Wireless Configurations:
Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Long Range PtP

Management Features:
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools:
Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment

System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications

OTHERS
------------------------------------------------------------------------------
Certification: CE, FCC, RoHS, IP65

Package Content:
Outdoor Wireless CPE
24V 0.25A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment
Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
