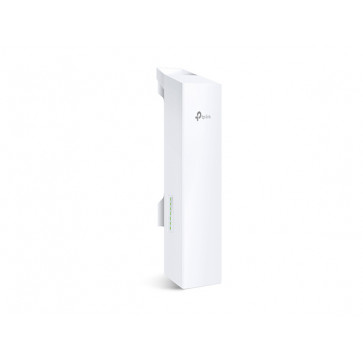

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE
TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE Specs, Price
Availability: In stock
TP-Link CPE220 CPE Highlight Features:
* Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
* Adjustable transmission power from 0 to 30dBm/1000mw
* System-level optimizations for more than 13km long range wireless transmission
* TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
* Centralized Management System – Pharos Control
* AP / Client / AP Router / AP Client Router (WISP) operation modes
* Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
TP-Link CPE220 CPE Specifications:
* Processor: Qualcomm Atheros 560MHz CPU, MIPS 24Kc
* Memory: 64MB DDR2 RAM, 8MB Flash
* Interface
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button
* Power Supply
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
* Power Consumption
10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
* Dimensions ( W x D x H ): 11×3.1×2.1 inch (276×79×60 mm)
* Antenna Type
Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
* Protection
15KV ESD Protection
6KV Lightning Protection
* Enclosure:
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
* Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
* Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
* Wireless Speeds
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
* Frequency: 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.
* Transmission Power: 30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.
* Wireless Configurations
Pharos MAXtream TDMA Technology
802.11b/g/n modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
> Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
* Management
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
* System Tools
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
* System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
* Dimensions(W x D x H): 85.8×43.9×31.9 mm
* Interfaces
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
* Button: Remote Reset Button
* Power Status LEDs: Green
* Input: 100-240VAC, 50/60Hz
* Output: 24VDC, 0.6A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
* Efficiency: > 80%
* Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
* Package Contents
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
* System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
* Environment
Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
