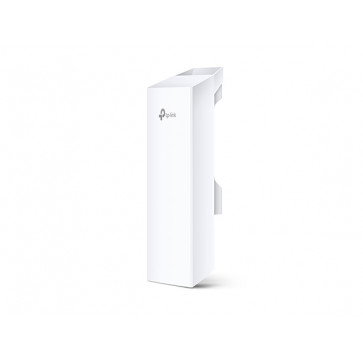

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE

TP-Link CP510 CPE Highlight Features:

* Built-in 13dBi 2x2 dual-polarized directional MIMO antenna

* Adjustable transmission power from 0 to 26dBm/200mw

* System-level optimizations for more than 15km long range wireless transmission

* TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications

* Centralized Management System – Pharos Control

* AP / Client / AP Router / AP Client Router (WISP) operation modes

* Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

TP-Link CPE510 CPE Specifications:

* Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc

* Memory: 64MB DDR2 RAM, 8MB Flash

* Interface
1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
1 Grounding Terminal
1 Reset Button

* Power Supply
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC

* Power Consumption
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

* Dimensions ( W x D x H ): 8.8 x 3.1 x 2.4 in

* Antenna Type
Built-in 13dBi 2 x 2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)

* Protection
15KV ESD Protection
6KV Lightning Protection

* Enclosure:
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

* Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled)

* Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

* Wireless Speeds
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)

* Frequency: 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

* Transmission Power: 23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

* Wireless Configurations
Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

* Management
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

* System Tools
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

* System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog

* Dimensions(W x D x H): 4.3 x 2.2 x 1.3 in

* Interfaces
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)

* Button: Remote Reset Button

* Power Status LEDs: Green

* Input: 100-240VAC, 50/60Hz

* Output: 24VDC, 0.6A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

* Efficiency: > 80%

* Certifications: CE/FCC, RoHS, IPX5

* Package Contents
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide

* System Requirements： Google Chrome, Safari, and Firefox browsers for web GUI management

* Environment
Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
