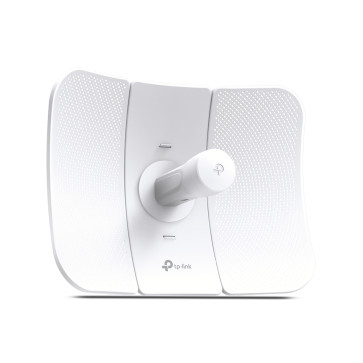

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE Specifications:

HARDWARE FEATURES
------------------------------------------------------------------------------
Processor: Qualcomm 750MHz CPU, MIPS 74Kc

Memory: 128 MB DDR2 RAM, 16 MB Flash

Interface:

- 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
- 1 Reset Button

Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

Voltage range: 16-27V DC

Max. Power Consumption:
7.3 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H ): 14.4 x 11.0 x 8.1 in.(366 x 280 x 207 mm)

Antenna Gain: 23 dBi
Antenna Beamwidth: 9° (Azimuth)/7° (Elevation)

Protection:
15 KV ESD Protection
6 KV Lightning Protection

Enclosure
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
------------------------------------------------------------------------------
Wireless Standards: IEEE 802.11a/n/ac

Wireless Speeds:
Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency: 5.15–5.85 GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power: Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
------------------------------------------------------------------------------
Network Configuration :
WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

Wireless Configurations:
Selectable channel width: 20, 40 or 80MHz
Automatic Wi-Fi channel selection
RF transmit power adjustment in 1 dB step
Dynamic Frequency Selection (DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption,
SSID broadcast enable/ disable
Multi-SSID with VLAN tagging in AP mode
Distance/ ACK timeout setting
Wireless MAC address filter
Wireless advanced features:
Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia
Long range point-to-point

Management Features:
Discovery and Remote Management with Pharos Control (Windows)
HTTP/ HTTPS Web-based management
System log
SNMP agent (v2c)
Ping watchdog
Dynamic DNS
SSH server

System Tools:
Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage
Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment

System-level Optimizations: Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES
------------------------------------------------------------------------------
Dimensions(W x D x H): 3.3 x 1.7 x 1.2 in.(85 × 44 × 30 mm)

Interfaces:
1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button: Remote Reset Button

Power Status LEDs: Green

Input: 100-240VAC, 50/60Hz

Output:
24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency: > 84.29%

Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
------------------------------------------------------------------------------
Certification: CE, FCC, RoHS, IP65

Package Content:
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide

Environment
Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
