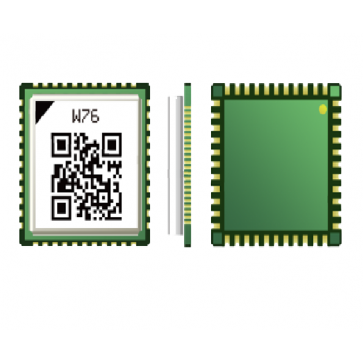

SIMCOM W76 WiFi Module

SIMCOM W76 is a small, low-power, low-cost Wi-Fi module. The module can be used in car networking, wireless routing, and other wireless terminals.

The SIMCOM W76 module conforms to IEEE Standard 802.11 b/g/n. The module is integrated with the baseband, PA and 2.4G RF transceivers, and supports data communication between SIMCom LTE CAT-4 modules A7600X-H RTOS series through SDIO 2.0 interface.

SIMCOM W76 WiFi Module Specifications：

* Frequency band: 2.412 ~ 2.484 GHz

* Supply Voltage Range:
- VDD33: 3.2~3.4V, Typ: 3.3V
- VDDIO_SDIO：1.7~1.9V, Typ: 1.8V
- VCC_M1_0V8：0.72~.0.88V, Typ: 0.8V

* Temperature Range: -40℃ to +85℃

* Dimension: 12.0 *12.0*2.1 mm

* Weight: 0.6g±0.1

* WLAN Standard: IEEE 802.11b/g/n

* Modulation Mode:
- DSSS/CCK(1/2/5.5/11Mbps)，
- OFDM(6/9/12/18/24/36/48/54Mbps),
- HT20 (MCS0~MCS7)

* Encryption Mode: WEP,TKIP,AES,WPA,WPA2

* AP (Max Access Point): 10

* Operator Mode: AP

* SDIO: Support 4 bit SDIO 2.0, Max 50MHz

* WLAN Baseband: 1×1 SISO, 20MHz bandwidth

* Transmitting Power
- 802.11b/11Mbps： TBD
- 802.11g/54Mbps： TBD
- 802.11n_HT20/72.2Mbps： TBD

* Rx Sensitivity
- 802.11b/11Mbps： TBD
- 802.11g/54Mbps： TBD
- 802.11n_HT20/72.2Mbps： TBD

* Max Date Rate
- 802.11b： 11Mbps
- 802.11g： 54Mbps
- 802.11n： 72.2Mbps(20MHz BW channel)

* Interfaces
- SDIO 2.0
- WLAN_EN
- WiFi Antenna
- Clock Input: 26MHz clock

* Certifications： TBD
