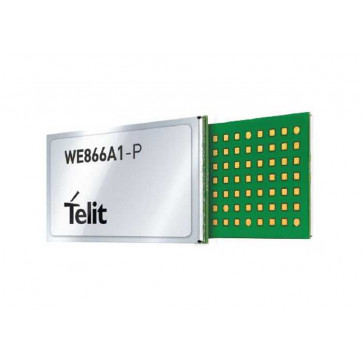

Telit WE866A1-P WiFi Module

Telit WE866A1-P is a new Wi-Fi module with small footprint and rich features make it perfect for network applications such as smart energy, sensor networks, home automation, and nearly any other application that benefits from Wi-Fi support. This add-on WLAN (IEEE 802.11 b/g/n) module provides a secure, powerful solution for customers looking for a simple and fast way to embed local area communication to Wi-Fi standards with cellular backhaul to powered by our xE910 line of 2G, 3G, LTE modules.

Telit WE866A1-P module is in an LGA package including an integrated MAC/Baseband processor, TCP IP Stack, serial flash, crystals, RF front-end components and band pass filter. Optimized to work with an external microprocessor, Telit WE66A1-P provides the fastest path to adding 2.4GHz wireless capability to your product.

Telit WE866A1-P WiFi Module Specifications:

* xE866 Telit FF

* Form factor: LGA package

* IP Stack(IPV4 and IPV6): TCP, UDP, RAW, ARP, DHCP, DNS, ICMP, SLL 3.0, TLS 1.2, HTPP(s) server

* Industry-Standard BSD Socket Application Programming Interfaces(APIs)

* 16 TCP/UDP or RAW sockets

* 6 TLS/SSL sockets

* Powerful Crypto Engine for Fast, Secure Wi-Fi and Internet Connections with 256-Bit AES Encryption for TLS and SSL Connections

* Roles: Station mode, AP with up to 4 stations,Browser and Wi-Fi Direct

* WPA2 Personal and Enterprise Security

* 2.4GHz, channel 1-13* (2.412 GHz - 2.472*)*Standalone value

* Data Standalone value: Max throughout 12Mbps in TCP, 16Mbps in UDP

* Interfaces:
- 4 wireless UART
- SPI Interface

* Temperature range: -40°C to +85°C

* Approvals
- CE, FCC/IC certified
- Wi-Fi certified
- IEEE 802.11b/g/n

* Supply Voltage
- Nominal: 3.8V
- Range: 3.1-4.5V

* Data Rate: up to 72.2Mbps(802.11n, MCS7)

* TX Power: 17.25dBm with 802.11b

* RX Sensitivity: 94.7dBm with 802.11b

* Dimensions: 15 x 19 x 2.2mm
