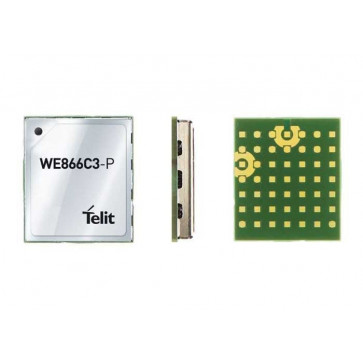

Telit WE866C3-P WiFi & Bluetooth Module

Telit WE866C3-P is a low power, dual-band (2.4 & 5GHz), 1-stream (1x1) 802.11ac Wi-Fi and Bluetooth (BT/BLE-4.2) module with an extremely small footprint that provides an easy & cost-effective way for manufacturers to add wireless connectivity to their products. With the integrated LTE-WiFi/BLE coexistence filter, the product offers a powerful cellular backhaul with Telit's LE910Cx 4G LTE module family.

Telit WE866C3-P also offers a high bandwidth Wi-Fi/BLE transceiver solution for Linux & Android* powered IoT systems, using the advanced 802.11ac technology.

Telit WE866C3-P Module Specifications:

* RF Specification:
- Wi-Fi - 802.11 a/b/g/n/ac (2.4 GHz, 5 GHz @ 20/40/80 MHz), BT/BLE - 4.2
- External antenna (RF pad)

* Host Interface:
- Wi-Fi: SDIO 3.0
- Bluetooth: UART
- Bluetooth Audio: PCM

* Modes: Wi-Fi AP (Access Point - Support upto 10 STA’s), STA (Client), Concurrent Mode (AP+STA), BLE Peripheral, central & concurrency

* Linux Transceiver Driver Support: Linux(x86 & i.Mx platform – Kernel version 4.9.11), Android

* Linux transceiver Wi-Fi Throughput: 200+Mbps (over SDIO)

* Support for Firmware Upgrade: Yes

* Coexistence:
- Integrated LTE-WiFi/BT coexistence filter
- Inbuilt Wi-Fi/BT coexistence

* LTE Companion Throughput:
- LE910C1-NF: DL 10Mbps, UL 5Mbps
- LE910C1-EU: DL 10Mbps, UL 5Mbps
- LE910C1-AP: DL 10Mbps, UL 5Mbps
- LE910C4-NF: DL 150Mbps, UL 50Mbps
- LE910C4-EU: DL 150Mbps, UL 50Mbps

* Radio Regulatory Certification: Wi-Fi: FCC, IC, RED, TELEC*, KC*, BT/BLE

* Compliance: Wi-Fi Alliance, BT SIG

* Environmental Compliance: RoHS, REACH

* Antenna Option: External Antenna (RF Pads)

* Dimension: 15 mm x 13 mm x 2.2 mm

* Operating Voltage: 3.3 V

* Operating Temperature: -30 °C to +85 °C (industrial grade)
