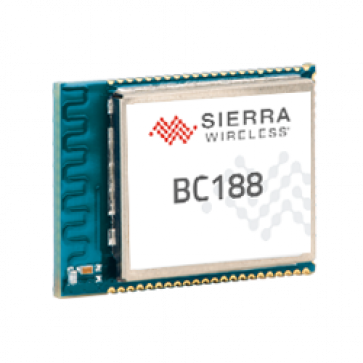

Sierra Wireless AirPrime BC188 WiFi Module

* Low Power Wi-Fi module with Microcontroller and Antenna

* Cortex-M4F CPU with integrated 512KB SRAM, 320KB ROM, 8Mbit Flash

* Ultra Low Power modes (Deep Sleep, Standby)

* IEE 802.11n/g/b, 1x1 SISO, 2.4 GHz and HT20

* Antenna Diversity

* Embedded Stack and TCP/IP, Simple UART interface

* 3xI2S, 3xSPI, 2xI2C, 3xUART, QSPI, Up to 35 GPIOS, 2 x Wake

* 2 Step ADC with PGA, 2 Channel or 1 Diff channel DAC

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Sierra AirPrime BC188 is a highly flexible, low power Wi-Fi module with integrated antenna is ideal for quickly and cost effectively adding wireless communication.

AirPrime BC188 supports 802.11 b/g/n and offers preloaded Melody Wi-Fi software including a TCP/IP stack and a simple UART interface. Sierra BC188 can be easily configured and controlled from the UART interface or by simply connecting to it from a Smartphone and controlling it from any browser. This module connects prosumer and industrial applications requiring simultaneous AP/station communication.

Sierra AirPrime BC188 Features and Benefits:

* Single band 2.4Ghz IEEE 802.11n/g/b, 1x1 SISO, 2.4 GHz and HT20 for secure WPA and SSL data transmission

* Simultaneous hotspot/client and low power modes

* Embedded TCP/IP Stack with simple UART interface for command and control

* Hostless module with FCC regulatory certification and integrated antenna for easy integration

* Cortex-M4F CPU with integrated 512KB RAM, 128KB ROM

* Over the Air Secure Firmware Upgrade

AirPrime BC188 Module Technical Specifications:

General Specifications:

* Wi-Fi: 802.11 b.g.n.d.e.h.i.k.r.w

* Interfaces: UART, AIO, GPIO, SPI, PCM, I2S, SPDIF, I2C

* Size: 22mm x 15.5mm x 1.5mm

* Weight: 0.9g

WiFi Specifications:

* Encryption: WEP 64 and 128 bit encryption (WPA), AES-CCMP, WAPI

* Frequency Range: 2400 to 2500 MHz

* Maximum Data Rate: 72.2Mbps, 20 MHz channels

* Tx output saturation: 26dBm

* Rx input IP3: -15dBm

* Phase Noise: -103dBc/Hz

Audio Specifications:

* DAC Output Range: 0.12V to 1.6V

* Common ADC Input: 0.9V (Typical)

Electric Specifications:

* Supply Voltage: 3.0V to 3.6 V DC (Supports Li Ion battery voltage range)

* Typical Current (Sleep): 36μA

* Typical Current(PowerSave): 0.4mA

* Operating Temperature: -40°C to 85°C
