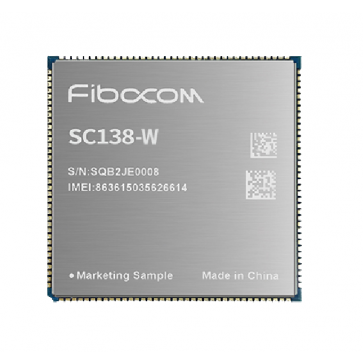

Fibocom SC138-W Smart WiFi Module

Fibocom SC138-W smart module is designed with Qualcomm QCM6125 platform. It has an Octa-core high-end platform 4*A73 2.0g + 4*A53 1.8g processor and integrated high-performance graphics engine, which can play 4K video smoothly and support multi-channel camera input. SC138supports a variety of long-distance communication modes and short-distance 2.4G+5G wireless transmission technologies like Wi-Fi/Bluetooth. With built-in LNA, it supports GNSS wireless positioning technology. SC138 preset open Android operating system with rich extension interfaces such as MIPI/ USB/ UART/ SPI/ I2C, which is the preferred solution for the core system of wireless intelligent products.

Fibocom SC138-W Smart Module Specifications:

* Product type: 4G Smart Module

* Package: 148 LCC+128 LGA

* Target region: Global

* Processor: Qualcomm's® QCM6125, Quad-core ARM® Cortex™-A73,2.0GHz+Quad-core ARM Cortex™-A53,1.8GHz

* GPU: Adreno 610

* Memory(Default): 2GB/4GB LPDDR4X RAM; 32GB/64GB eMMC&UFS

* Dimension (mm): 41.0 x 41.0 x 2.8

* Frequency:
- LTE FDD: B1/3/8/18/19/21/26/28
- LTE TDD: B41
- WCDMA: B1/6/8/9/19
- GSM: 850/900/1800/1900MHz

* WIFI: 802.11 a/b/g/n/ac, (2X2 MIMO) 2.4G/5G/6G

* BT: BT 5.0

* GNSS: NA

* OS: Android Q/R/S

* Power Supply: DC 3.5 ～ 4.2V

* Weight: About 9.6g

* Operating Temp: -30°C ~ +75°C

* Storage Temp: -40°C ~ +85°C

* Data rates:
- LTE FDD (Mbps): NA
- LTE TDD (Mbps): NA
- UMTS/HSPA/HSPA+ (Mbps): NA
- HSPA+: NA
- EDGE/GPRS(Kbps): NA
- WIFI (Mbps): up to 433

* Video Processing
- Video Encoding: 4K@30fps (H.264, HEVC, VP9)
- Video Decoding: 4K@30fps (H.264, HEVC, VP8)

* Interfaces
- UART/SPI(Mbps): 3 x UART Up to 4
- I2C(Kbps): I2C Up to 3.4Mbps
- USB: 1 x USB2.0/3.1, Support OTG, Support DP over Type-C
- SDIO: 1 x SDIO
- CAM: Three 4-lane CSIs (4/4/4 or 4/4/2/1)D-PHY 1.2 at 2.5 Gbps per lane or C-PHY 1.0 at 10 Gbps (3.42 Gbps/trio)
- GPIO: 33 GPIOs
- Display: 1 x 4-lane MIPI_DSI; up to (2520x1080)@60fps
- Speaker: 1.5W on 8Ω load in Class-D mode
- Receiver: 1 x Mono, AB
- Mic: 2 x analog microphones
- Handset: Stereo CLASS AB
- USIM: 2 x SIM card,support dual-SIM dual-standby
- Keys: Power on/off /Volume up /Volume down /Reset

* Advantages
1、Android Q/R/S
2、High computation capability and support 4K video coding
3、Dual LCDs for independent display DSI (2520x1080@60fps+1920x1080@60fps over DP)

* Applications: Smart Cash Register,Security Monitoring, High-end Police or Law Enforcement Equipment, Telematics, Hand-held sets

* Regulation: RoHS/CE/HF
