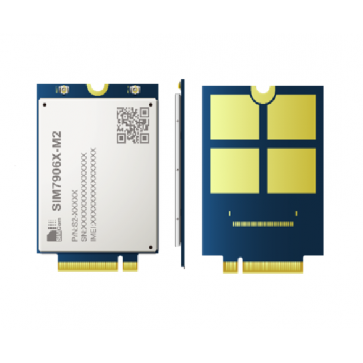

SIMCOM SIM7906G-M2 LTE Cat6 Module
Availability: In stock
SIMCOM SIM7906G-M2 is an LTE Cat 6 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+. It supports maximum 300Mbps downlink rate and 50Mbps uplink rate.
SIMCOM SIM7906G-M2 adopts M.2 form factor. It is easy for customers to integrate.
SIMCOM SIM7906G-M2 supports multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7912X-M2 series modules. Meanwhile SIM7906G-M2 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices and remote diagnostics etc.
SIMCOM SIM7906G-M2 Module Specifications:
* SIMCOM LTE Module
* Category: LTE Cat6
* Form factor:M.2
* Support LTE-TDD/LTE-FDD/WCDMA networks
* Supported frequency bands:
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66
- LTE-TDD: B38/B40/B41/B42/B43/B46/B48
- WCMDA: B1/B2/B3/B4/B5/B6/B8/B9/B19
* MIMO: 2 X 2 MIMO
* LTE Download speed up to 300Mbps, upload speed to 50Mbps
* HSPA+ Speeds:DL 42Mbps, UL 11.2Mbps
* Supply voltage range: 3.135V~ 4.4V; Typ: 3.7V
* Control Via AT Commands
* Operation temperature: -30℃ to +70℃
* Dimensions: 42.0*30.0*2.3mm
* Weight: 6.1g
* Support DL 2 x CA
* GNSS (GPS;GLONASS and BeiDou)
* Other Features
- RIL supporting for Android 6/7/8/9
- USB Driver for Microsoft Windows Win7/Win8/Win10/Linux/Android
- MBIM to Win8/Win 10
- NDIS: Linux/Win7/Win8/Win10
- Firmware upgrade via USB
- TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
* Interfaces
- USB3.0 x1 (high-speed)
- UART x1 (4-wire UART )
- SIM card x1 (1.8V and 2.95V)
- PCM x1
- I2C x1
- Diversity Receiver
* Certifications/Regulatory: CE*/GCF*/FCC*/PTCRB*
