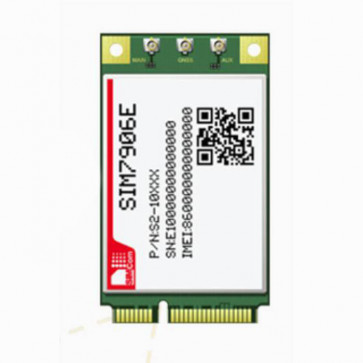

SIMCom SIM7906E-PCIe LTE CAT-6 mPCIe Module

SIMCOM SIM7906-PCIE is Multi-Band LTE-FDD/LTE-TDD/HSPA+ module solution in a Mini PCIe form factor which supports LTE CAT6 up to 300Mbps data transfer. SIMCOM SIM7906E mPCIe module has strong extension capability with rich interfaces including UART, USB3.0, GPIO etc. The SIMCOM 4G LTE module provides much flexibility and ease of integration for customer's application.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

SIMCOM SIM7906E-PCIe Module Specifications:

* SIMCOM LTE Module

* P/N: S2-1085C

* Category: LTE Cat6

* LTE Download speed up to 300Mbps, upload speed to 50Mbps

* Support LTE-TDD/LTE-FDD/WCDMA networks

* Supported frequency bands:

- LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32
- LTE-TDD B38/B40/B41
- DL 2XCA:
> B1+B1/B5/B8/B20/B28;
> B3+B3/B5/B7/B8/B20/B28;
> B7+B5/B7/B8/B20/B28;
> B20+B32;
> B38+B38;
> B40+B40;
> B41+B41;(Note:B32 is only for secondary component carrier)

- WCDMA B1/B3/B5/B8

* Supply voltage range: 3.135V~ 4.4V; Typ: 3.7V

* Control Via AT Commands

* Operation temperature: -30℃ to +70℃

* Dimensions: 42.0*30.0*2.3mm

* Weight: 6.1g

* Support DL 2 x CA

* GNSS (GPS;GLONASS and BeiDou)

* Other Features
- USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
- USB Driver for Linux /Android
- RIL supporting for Android 2.3/4.0/5.0/6.0/7.0
- MBIM to Win8
- Firmware update via USB
- TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
- SSL3.0/TLS1.0/TLS1.2
- FOTA

* Interfaces
- USB3.0 x1 (high-speed)
- USB2.0 x1 (high-speed)
- UART x1 (4-wire UART )
- SIM card x1 (1.8V and 3V)
- PCIE x1
- PCM x1
- I2C x1
- GPIO x1
- Antenna x3
