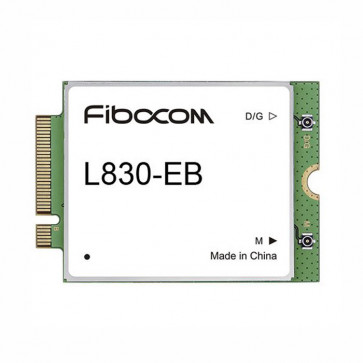

Fibocom L830-EB Lenovo Thinkpad T480s LTE Cat6 WWAN Module

* 4G LTE M.2 WWAN card for Thinkpad laptops


* LTE Cat6 cellular module


* LTE DL 300Mbps/UL 50Mbps


* Support LTE Band 1/3/5/7/8/20/28


* Form factor: M.2

Sign up for price alert

Availability: In stock

$179.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

FIBOCOM L830-EB series are M.2 form factor LTE wireless communication modules which support LTE-FDD/WCDMA. The highest speed can reach Cat6 300Mbps DL and 50Mbps UL. L830-EB can cover multi-countries network, including EMEA, Taiwan, and etc. L830-EB can be widely used in consumer electronics(Laptop/Tablet), gateway industry.


FIBOCOM L830-EB Specifications and Feature:

* LTE Cat6 cellular module

* Form factor: M.2

* Chipset/Platform: Intel XMM7262

* Laptop/Tablet SKU With GNSS

* Gateway SKU Without GNSS

* Support 4G LTE FDD Band 1/3/5/7/8/20/28

* Support 3G WCDMA/UMTS Band 1/5/8

* CSFB Support

* GNSS Support

* Operating Voltage: DC 3.135~4.4V, Typical 3.3V

* Operating Temperature: - 30~+65℃

* AT Command Set: 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands

* TX Power: FDD LTE:23dBm WCDMA:23.58Bm

* RX Sensitivity:FDD LTE:-98dBm~102dBm WCDMA:~-220dBm

* Data Rates:
- FDD LTE: 300Mbps DL, 50Mbps UL
- UMTS: 384Kbps DL, 384Kbps UL


* Interfaces:
- USIM Card: 1.8V/3.0V
- USB 2.0
- EINT
- System Indicator
- Clock


* Drivers: Linux, Win 10

* Approvals: Laptop/Tablet SKU:GCF,CE,RoHS,HF,CB,NCC,etc.Total 18 certs for global shipment

* Gateway SKU 1: NCC, Anatel(TBD),RoHS,HF

* Gateway SKU 2: GCF,CE,RoHS,HF,FCC,Vodafone

* Dimensions: 90*42*2.3mm

* List of supported Lenovo ThinkPad models by Fibocom L830-EB:

- ThinkPad X280 (machine types: 20KE ... 20KF)
- ThinkPad X380 Yoga (machine types: 20LH ... 20LJ)
- ThinkPad S1 4th Gen (machine types: 20LK ... 20LL)
- ThinkPad P52s (machine types: 20LB ... 20LC)
- ThinkPad T580 (machine types: 20L9 ... 20LA)
- ThinkPad T480s (machine types: 20L7 ... 20L8)
- ThinkPad T480 (machine types: 20L5 ... 20L6)
- ThinkPad L580 (machine types: 20LW ... 20LX)
- ThinkPad L480 (machine types: 20LS ... 20LT)
