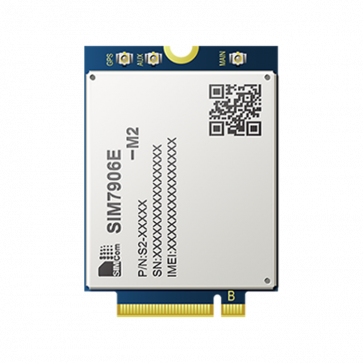

SIMCOM SIM7906E-M2 LTE Cat6 M.2 Module

SIMCOM SIM7906E-M2 is Multi-Band LTE-FDD/LTE-TDD/HSPA+ module solution in a M.2 type which supports LTE CAT6 up to 300Mbps data transfer.

SIMCOM SIM7906E-M2 module has strong extension capability with rich interfaces including UART, USB3.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.

The package of SIMCOM SIM7906E-M2 is M.2, TYPE 3042-S3-B. AT commands of SIM7906E-M2 are mostly compatible with SIM7500/SIM7600 Series modules. This also minmize the investments of customers, and enables a short time-tomarket.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

SIMCOM SIM7906E-M2 Module Specifications:

* SIMCOM LTE Module

* Category: LTE Cat6

* LTE Download speed up to 300Mbps, upload speed to 50Mbps

* Support LTE-TDD/LTE-FDD/WCDMA networks

* Supported frequency bands:

- LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32
- LTE-TDD B38/B40/B41
- DL 2XCA:
> B1+B1/B5/B8/B20/B28;
> B3+B3/B5/B7/B8/B20/B28;
> B7+B5/B7/B8/B20/B28;
> B20+B32;
> B38+B38;
> B40+B40;
> B41+B41;(Note:B32 is only for secondary component carrier)

- WCDMA B1/B3/B5/B8

* Supply voltage range: 3.135V~ 4.4V; Typ: 3.7V

* Control Via AT Commands

* Operation temperature: -30℃ to +70℃

* Dimensions: 42.0*30.0*2.3mm

* Weight: 6.1g

* Support DL 2 x CA

* GNSS (GPS;GLONASS and BeiDou)

* Other Features
- USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
- USB Driver for Linux /Android
- RIL supporting for Android 2.3/4.0/5.0/6.0/7.0
- MBIM to Win8
- Firmware update via USB
- TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
- SSL3.0/TLS1.0/TLS1.2
- FOTA

* Interfaces
- USB3.0 x1 (high-speed)
- USB2.0 x1 (high-speed)
- UART x1 (4-wire UART )
- SIM card x1 (1.8V and 3V)
- PCIE x1
- PCM x1
- I2C x1
- GPIO x1
- Antenna x3
