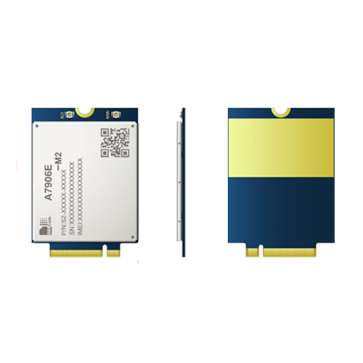

SIMCOM A7906E-M2 4G LTE Cat6 M.2 Module

SIMCOM A7906E-M2 is a multi-Band LTE-FDD/LTE-TDD/HSPA+ module solution in a M.2 type which supports LTE CAT6 up to 300Mbps data transfer.

It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.

The package of A7906E-M2 is M.2,TYPE 3042-S3-B. AT commands of A7906E-M2 are mostly compatible with SIM7500/SIM7600/SIM7906/SIM7912 Series modules. This also minmize the investments of customers, and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

SIMCOM A7906E-M2 module Specifications:

* Product type: 4G LTE Module

* LTE Category: Cat6

* Frequency Bands:
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32
- TDD-LTE: B38/B39/B40/B41
- WCDMA: B1/B5/B8
- DL 2XCA: B1+B1/B5/B8/B20; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B20+B32; B38+B38; B39+B39; B40+B40; B41+B41;(Note:B32 is only for secondary component carrier)

* Supply voltage range: 3.135V~ 4.4V, Typ: 3.7V

* Control Via AT Commands

* Operation temperature: -30℃ to +70℃

* Dimensions: 42.0*30.0*2.3mm

* Weight: 6.3g

* LTE-TDD/LTE-FDD/WCDMA

* Support DL 2XCA

* Data rates: Uplink up to 50Mbps, Downlink up to 300Mbps

* Other features:
- USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
- USB Driver for Linux /Android
- RIL supporting for Android 6/7/8/9*
- Firmware update via USB
- TCP*/IP*/IPV4*/IPV6*/Multi-PDP*/DNS*
- SSL3.0*/TLS1.0*/TLS1.2*
- FOTA*

* Interfaces
- USB2.0 x1
- UART x1 (4-wire UART )
- SIM card x1 (1.8V and 3V)
- PCIE x1
- I2C x1
- Antenna x2
