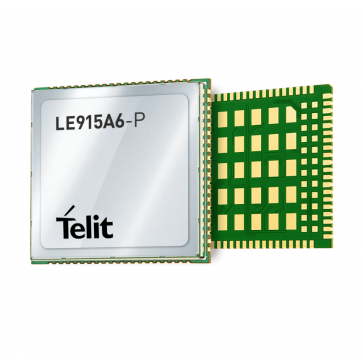

Telit LE915A6-P LTE Cat6 Embedded Module

Telit LE915A6-P is 4G LTE category 4 wireless module which comply with the 3GPP Release 9 (Rel. 9) and support Citizens Broadband Radio Service (CBRS) Band 48 for private LTE applications and LTE Bands 42 and 43. This compact and cost-effective LGA form factor family is available both as Class 4 and Class 6 and ideal for different industrial applications (e.g., oil and gas, surveillance, telemetry, etc.).

Telit LE915A6-P Module Key Benefits：

• Compact LGA form factor
• Support for LTE Bands 42, 43 and 48 (CBRS)
• Variety of hardware interfaces: USB 2.0 HS, UART and user-definable GPIOs
• Internet-friendly with integrated TC/IP and UDP/IP stacks
• Firmware over-the-air (FOTA) update

Telit LE915A6-P 4G Module Specifications：

* Product type: 4G LTE Module

* Category: LTE Cat6

* Support for LTE Bands 42, 43 and 48 (CBRS)

* LTE Cat.4 DL 200Mbps, UL 50Mbps

* Data-only module

* LTE TDD Cat 6, 3GPP Rel. 9 compliant (LE915A6-P)

* Rx diversity and MIMO DL 2 × 2

* SMS over NAS

* IPv4/IPv6 stack

* Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit custom AT commands

* FOTA update

* Interfaces
- 134-pin LGA interface
- 10 I/O ports (1.8V) including multifunctional I/Os
- USB 2.0 HS/HSIC
- 2x UART
- 1.8 V/3 V SIM interface
- RF pad, RX diversity & MIMO pad

* Dimensions: 32 x 29 x 1.6 mm

* Full industrial operating temperature range: -30 °C to +60 °C

* REACH and RoHS compliant

* Approvals
- Regulatory: FCC (North America)
- CBRS OnGo
