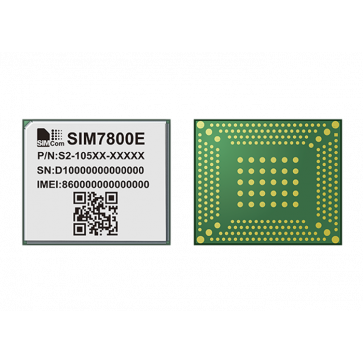

SIMCOM SIM7800E LTE Cat4 Module

SIMCOM SIM7800E is a Multi-Band LTE-TDD/LTE-FDD/HSPA+ and Dual-Band GSM/GPRS/EDGE automotive grade module which supports LTE CAT4 up to 150Mbps for downlink and 50Mbps for uplink data transfer. SIM7800E is designed and manufactured according to IATF 16949:2016 quality management system, it is targeted at the IoV (Internet of Vehicles) applications. It has strong extension capability with abundant interfaces including UART, SDIO,I2C,SPI, GPIO etc. The module provides much flexibility and ease of integration for customer's application, and its excellent performance in ESD and EMI protection ensures great robustness in harsh environments.

SIMCOM SIM7800E module Specifications:

* SIMCOM LTE Cellular Module

* Category: LTE Cat4

* Support 4G LTE-TDD B38/B40/B41

* Support 4G LTE-FDD B1/B3/B5/B7/B8/B20

* Support 3G UMTS/HSPA+ B1/B5/B8

* Support 2G GSM/GPRS/EDGE 900/1800 MHz

* Control Via AT Commands

* Supply voltage range: 3.3V~ 4.3V

* Operation temperature: -40℃to +85℃

* Dimension: 34*40*3.1 mm

* Weight:8.7g±0.2g

* GNSS: gpsOneGen8C;standalone;GPS/GLONASS/Beidou2; AGPS(SUPL2.0);XTRA;LBS

* LTE CAT4: Uplink up to 50Mbps, Downlink up to 150Mbps

* HSPA+: Uplink up to 5.76Mbps, Downlink up to 42 Mbps

* UMTS: Uplink/Downlink up to 384Kbps

* EDGE Class: Uplink/Downlink up to 236.8Kbps

* GPRS: Uplink/Downlink up to 85.6Kbps

* Other features
- USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
- USB Driver for Linux /Android
- RIL supporting for Android
- Firmware update via USB
- TCP/IP/IPV4/IPV6 Multi-PDP/FTPS/HTTPS/DNS/COAP/MQTT
- DTMF/TTS/eCall
- S-FOTA: OTA downlaod solution/Local security upgrade/S-Delta solution
- Security: SELinux/Trustzone/Secure boot
- S-FS: Optimize Linux UBI filesystem/Backup and restore mechanism
- Open development: Windows SDK/Open Linux
- WIFI: support 2.4G/5G mode; AP+STA; Max of Connection number: 30 (with W59 module)
- BT:BT 3.0 SPP/BLE 4.2 (with W59 module)
- Multimedia : Play/record multimedia files
- Virtual Ethernet: RNDIS/NDIS
- Antenna diagnostics

* Interfaces
- USB 2.0 Interface with OTG Function
- UART *3
- I2C
- I2S
- SPI
- HSIC
- SDIO
- SD Card
- ADC *3
- SGMII Interface
- GPIO *5
- 1.8V/3.0V USIM Interface

* Certifications
- CE
- RoHS / REACH
