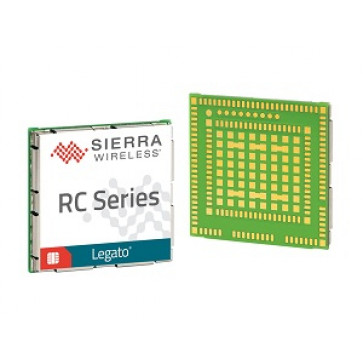

Sierra Wireless AirPrime RC7630-1 LTE Cat1 Module

Sierra Wireless AirPrime RC7630-1 module is part of the RC Series that lowers total cost of ownership (TCO) by offering a module with Ready-to-Connect embedded SIM to instantly connect devices anywhere in the world. The industrial-grade CF3® (Common Flexible Form Factor) footprint future-proofs designs, enabling you to build IoT products on the most scalable module platform in the world.

This LTE Cat-1 wireless module is ideal for low-bandwidth IoT applications that require real-time communication along with the longevity and network quality that 4G LTE networks bring.

Delivering up to 10Mbps download speed, many IoT projects requiring the speed between LPWA and Cat-4 technologies are using Cat-1 networks to future-proof their designs as 3G networks sunset.

Sierra Wireless AirPrime RC7630-1 LTE Cat-1 Module Specifications:

* Product type：4G LTE Module

* Category: LTE Category 1

* Target region: Japan and Korea

* Chipset: Qualcomm

* Package type: LGA (Snap-in socket option)

* Support 4G LTE Bands: B1, B3, B5, B7, B8, B18, B19, B21

* LTE Download Speed up to 10Mbps, Upload speed up to 5Mbps

* GNSS: BeiDou, Galileo, GLONASS, GPS, QZSS

* Interfaces:
- UART: 1 X 8-wire
- USB x 1
- I2C x 1
- ADC x 2
- GPIO x 8
- Tx ON Indicator x 1
- SIM interface: 1.8V/3V1

* Antenna Type: Diversity, MIMO

* Driver: Windows® 10, Linux Driver: Standard ECM, Android RIL

* Firmware: Secure boot, Pre-certified firmware

* Audio Codec: HR, FR, EFR, AMR, Digital Audio, DTMF, Echo Cancellation & Noise Reduction, PCM, VoLTE

* Cloud services: Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option

* Operating Temperature:-40°C ~ 85°C

* Dimensions: 22 x 23 x 2.5 mm

* Carrier: NTT Docomo, KDDI

* Planned Carrier：KT, LGU+, Sierra Wireless

* Regulatory: GCF, JRA/JRF, KC Mark
