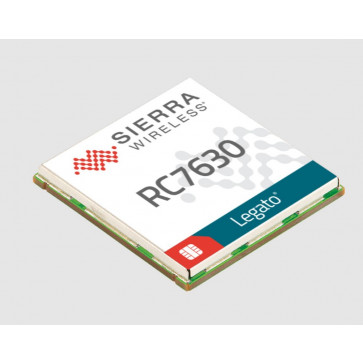

Sierra Wireless AirPrime RC7630 LTE Cat4 Module

Sierra Wireless AirPrime RC7630 module is part of the RC Series that lowers total cost of ownership (TCO) by offering a module with Ready-to-Connect embedded SIM to instantly connect devices anywhere in the world. The industrial-grade CF3® (Common Flexible Form Factor) footprint future-proofs designs, enabling you to build IoT products on the most scalable module platform in the world.

This LTE Cat-4 embedded module delivers up to 150Mbps download speed and is ideal for IoT applications requiring broadband connectivity such as video surveillance, info entertainment, telematics, and mission-critical networking applications.

Sierra Wireless AirPrime RC7630 LTE Cat4 Module Specifications:

* Product type：4G LTE Module

* Category: LTE Category 4

* Target region: Japan and Korea

* Chipset: Qualcomm

* Package type: LGA (Snap-in socket option)

* Support 4G LTE Bands: B1, B3, B5, B7, B8, B18, B19, B21

* LTE Download Speed up to 150Mbps, Upload speed up to 50Mbps

* GNSS: GPS, Galileo, Glonass, QZSS, BeiDou

* Interfaces:
- UART: 1 X 8-wire
- USB x 1
- I2C x 1
- ADC x 2
- GPIO x 8
- Tx ON Indicator x 1
- SIM interface: 1.8V/3V x 1

* Antenna Type: Diversity, MIMO

* Driver: Windows® 10, Linux Driver: Standard ECM, Android RIL

* Firmware: Secure boot, Pre-certified firmware

* Audio Codec: HR, FR, EFR, AMR, Digital Audio, DTMF, Echo Cancellation & Noise Reduction, PCM, VoLTE

* Cloud services: Free FOTA upgrades, Connectivity Management option, Device Management option

* Operating Temperature: -40°C ~ +85°C

* Embedded SIM: Optional Ready-to-Connect (Sierra Wireless USIM)*

* Dimensions: 22 x 23 x 2.5 mm

* Carrier: NTT Docomo, KDDI

* Planned Carrier：KT, LGU+, Sierra Wireless

* Regulatory: GCF, JRA/JRF, KC Mark
