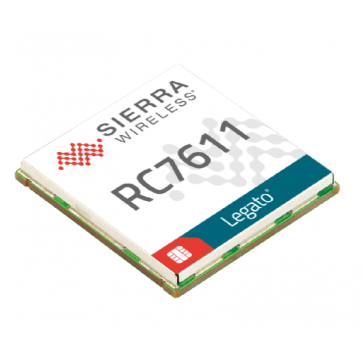

Sierra Wireless AirPrime RC7611 LTE Cat4 Module
* Sierra wireless 4G LTE Module
* Chipset: Qualcomm Atheros MDM9207
* Package type: LGA (Snap-in socket option)
* GNSS: BeiDou, Galileo, GLONASS, GPS, QZSS
* LTE Download Speed up to 150Mbps
Availability: In stock
Sierra Wireless AirPrime RC7611 module is part of the RC Series that lowers total cost of ownership (TCO) by offering a module with Ready-to-Connect embedded SIM to instantly connect devices anywhere in the world. The industrial-grade CF3® (Common Flexible Form Factor) footprint future-proofs designs, enabling you to build IoT products on the most scalable module platform in the world. This LTE Cat-4 embedded module delivers up to 150Mbps download speed and is ideal for IoT applications requiring broadband connectivity such as video surveillance, info entertainment, telematics, and mission-critical networking applications.
The module features FOTA (Firmware Over the Air) upgrades and built-in cloud connectivity from AirVantage for wireless communication. It leverages AT commands to enable easy integration to a host platform and comes with Embedded TCP/IP Stacks. The module supports Windows® 10, Linux Driver: Standard ECM, Android RIL system drivers.
The RC7611 is available in an LGA package that measures 22 x 23 x 2.5 mm with UART, I2C, GPIO, and ADC interfaces. The industrial-grade CF3® (Common Flexible Form Factor) footprint future-proofs designs and enables IoT products to be built on highly scalable module platform. It follows regulations set by FCC, GCF, IC, and PTCRB.
Sierra Wireless AirPrime RC7611 Module Specifications:
* Product type:4G LTE Module
* Category: LTE Category 4
* Target region: North America
* Chipset: Qualcomm Atheros MDM9207
* Package type: LGA (Snap-in socket option)
* Support 4G LTE Bands: B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
* LTE Download Speed up to 150Mbps, Upload speed up to 50Mbps
* GNSS: BeiDou, Galileo, GLONASS, GPS, QZSS
* RF Family/Standard: Cellular, Navigation
* Interfaces:
- UART: 1 X 8-wire
- USB x 1
- I2C x 1
- ADC x 2
- GPIO x 8
- Tx ON Indicator x 1
- SIM interface: 1.8V/3V1
* Antenna Type: Diversity, MIMO
* Driver: Windows® 10, Linux Driver: Standard ECM, Android RIL
* Firmware: Secure boot, Pre-certified firmware
* Audio Codec: HR, FR, EFR, AMR, Digital Audio, DTMF, Echo Cancellation & Noise Reduction, PCM, VoLTE
* Cloud services: Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option
* Operating Temperature:-40°C ~ 85°C
* Dimensions: 22 x 23 x 2.5 mm
* Carrier: AT&T, Sprint, T-Mobile, Verizon, Sierra Wireless
* Regulatory: FCC, GCF, IC, PTCRB
