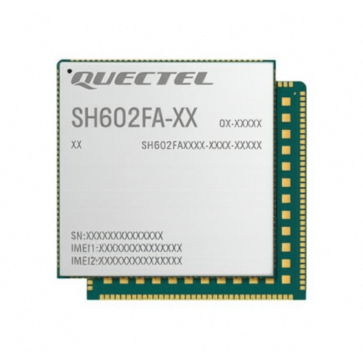

Quectel SH602FA 4G LTE Cat 4 Smart Module

Quectel SH602FA is a high-performance 4G LTE Cat 4 smart module designed for embedded devices requiring robust processing power and multimedia capabilities without an external host processor.

Quectel SH602FA 4G LTE Cat 4 Smart Module Specifications:

Core Processing & OS
-----------------------------------------
* Processor (SoC): MediaTek MT8786 64-bit octa-core processor
- 2x Cortex-A75 cores @ 2.0 GHz
- 6x Cortex-A55 cores @ 1.8 GHz
* Graphics (GPU): ARM Mali-G52 2EEMC2
* Operating System: Native Android 16
* Memory & Storage Configurations:
- 4 GB LPDDR4X + 64 GB eMMC
- 8 GB + 128 GB
- 12 GB + 256 GB

Connectivity & Wireless
-----------------------------------------
* Cellular Network: Worldwide LTE Cat 4, UMTS/HSPA+, and GSM/GPRS/EDGE coverage
* Maximum Data Rates: LTE Cat 4 delivering up to 150 Mbps downlink / 50 Mbps uplink
* Antenna Tech: Supports MIMO for enhanced link quality
* Local Wireless: Dual-band Wi-Fi (802.11a/b/g/n/ac) and Bluetooth 5.1
* GNSS (Positioning): Multi-constellation GPS, GLONASS, BDS, Galileo, and QZSS
* Variants Available: Includes regional cellular sub-models and a Wi-Fi/Bluetooth-only version (-WF).

Multimedia Support
-----------------------------------------
* Display Interface: MIPI-DSI supporting FHD+ resolutions up to 2520 x 1080 @ 60 fps
* Camera Interface: Supports dual concurrent working cameras
* Camera Capability: Supports primary high-resolution sensors up to 64 MP
* Video Capabilities: 2K video recording and playback at 2560 x 1440 @ 30 fps

Hardware Interfaces & Physical Specs
-----------------------------------------
* Peripheral Interfaces: 47x GPIOs, 1x ADC, touch controls, I2C, I2S, SPI, and UART buses
* USB: USB 2.0 interface
* Form Factor: LCC package
* Dimensions: 40.5 mm x 40.5 mm x 2.8 mm
* Operating Temperature: Industrial-grade −35°C to +75°C
