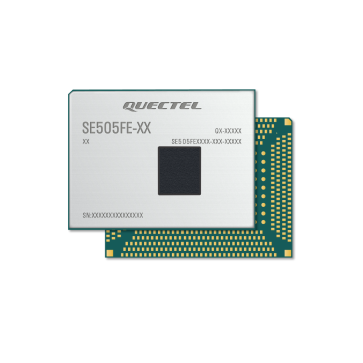

Quectel SE505FE 5G Sub-6GHz Smart Module

Quectel SE505FE is an entry-level 5G Sub-6GHz smart module designed for industrial and commercial IoT devices, running on a production-ready Android 16 operating system. It integrates processing power, advanced multimedia interfaces, and wide-area cellular connectivity onto a single board.

Quectel SE505FE 5G Sub-6GHz Smart Module technical specifications:

Core Processing & OS
-------------------------------------------
* Processor (SoC): MediaTek MT8863T 64-bit octa-core processor
- 2x Cortex-A76 cores @ 2.4 GHz
- 6x Cortex-A55 cores @ 2.0 GHz
* Graphics (GPU): ARM Mali-G57 (integrated with an IMG GE8300 @ 660MHz GPU)
* Operating System: Native Android 16
* Memory & Storage:
- Standard: 4 GB LPDDR4X + 64 GB eMMC
- Optional configurations: 8 GB + 128 GB (expandable up to 12 GB + 512 GB)
- External expansion: Supports SD cards up to 2 TB

Connectivity & Wireless
-------------------------------------------
* Cellular Network: 5G Sub-6 GHz, 4G LTE, and 3G WCDMA
* Maximum Data Rates: Up to 3.27 Gbps downlink / 1.25 Gbps uplink
* Antenna Tech: 4x4 Downlink MIMO
* Local Wireless: Wi-Fi 6 (802.11ax) and Bluetooth 5.2
* GNSS (Positioning): Multi-constellation receiver supporting GPS, BDS, GLONASS, Galileo, and QZSS
* Variants Available:
- SE505FE-EM (Eurasia/regional cellular)
- SE505FE-NA (North America cellular)
- SE505FE-WF (Wi-Fi & Bluetooth only, no cellular)

Multimedia Support
-------------------------------------------
* Display Interface: 4-lane MIPI-DSI supporting FHD+ resolution at up to 120 fps / 120 Hz
* Camera Interface: 3x 4-lane MIPI-CSI
- Supports a single camera up to 32 MP @ 30 fps, or dual cameras up to 16 MP + 16 MP @ 30 fps
* Video Capabilities: Recording and playback of 1080p x 2520 @ 120 fps video

Hardware Interfaces & Physical Specs
-------------------------------------------
* Peripheral Interfaces: 181 GPIOs, 2x UART, 9x I2C, 2x SPI, 2x I2S, and 5x ADCs
* USB: USB 3.1 with backwards compatibility to USB 2.0
* Form Factor: LGA package
* Dimensions: 42.5 mm x 56.5 mm x 2.95 mm
* Operating Temperature: Industrial-grade -35 deg C to +75 deg C
