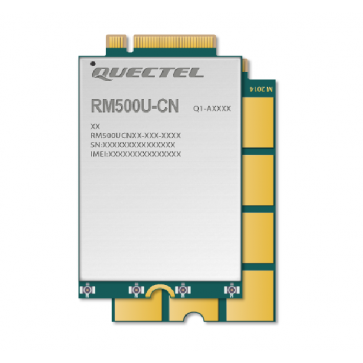

Quectel RM500U-CN 5G Sub-6GHz M.2 Module

* Quectel 5G NR Module


* Form factor: M.2 package


* Target market: China


* 5G SA Sub-6 speeds: DL 2Gbps, UL 1Gbps


* 5G NSA Sub-6 speeds: DL 2.2Gbps, UL 575Mbps


* Specially designed for IoT/eMBB applications

Sign up for price alert

Availability: In stock

Regular Price: $599.00

Special Price $549.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Quectel RM500U-CN is a high-performance, cost-effective 5G Sub-6 GHz module in M.2 package specially designed for IoT/eMBB applications. Compliant with 3GPP Release 15 technology, it automatically adapts 5G NR NSA and SA dual-module network, supporting TDD and FDD dual-modes, and supporting dual cards. It is backward compatible with 4G/3G, and the package design and pin definition are compatible with Quectel's 5G module RM500Q series.

Quectel RM500U-CN module has built-in rich network protocols, integrated rich peripheral interfaces. It provides PCIe*/USB/SDIO*/UART/SPI/I2C*/I2S/GPIOs and other communication interfaces, and supports multiple drivers and software functions. It also supports VoLTE (optional), VoNR* (optional), DFOTA*, Audio, eSIM* (optional), greatly expanding its application scenarios in the IoT industry. Quectel RM500U-CN can be widely used in vertical industries such as industrial routers, home networking, industrial PDA, smart education, high-definition video, smart city, home entertainment and so on.


Quectel RM500U-CN 5G Module Specifications:

* Product type: 5G NR Sub-6Ghz Module

* Form factor: M.2 package

* Target market: China

* 5G: 3GPP Release 15 NSA/SA operation´╝îSub-6 GHz

* Support frequency bands:
- 5G NR: n1/n28*/n41/n77/n78/n79
- 4 × 4 MIMO: n1/n41/n77/n78/n79
- LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28
- LTE-TDD: B34/B38/B39/B40/B41
- WCDMA: B1/B2/B5/B8

* Data rates:
- 5G SA Sub-6: DL 2Gbps, UL 1Gbps
- 5G NSA Sub-6: DL 2.2Gbps, UL 575Mbps
- LTE: DL 600Mbps, UL 150Mbps
- UMTS: DL 42.2Mbps, UL 11Mbps


* Interfaces:
- UART x 1
- PCIe 2.0 x 1
- (U)SIM x 2
- UART x 2
- USB 2.0 + USB3.0 x 1
- SDIO 3.0 x 1
- SPI x 1
- PCM/I2S x 2
- I2C x 1
- Ant x 4


* Software features:
- USB Drivers: Windows 7/8/8.1/10, Linux 2.6~5.12, Android 4.x~11.x
- PCIe Drivers: Linux 3.10~5.12
- RIL Drivers: Android 4.x~11.x
- USB RNDIS drivers: Linux 2.6~5.12
- USB ECM Driver: Linux 2.6~5.12
- USB NCM Driver: Linux 2.6~5.12
- USB MBIM: Windows 8/8.1/10, Linux 3.18~5.12


* Working temperature: -30°C ~ +60°C

* Dimensions: 30.0 × 52.0 × 2.3mm

* Weight: around 8.9g

* Carrier approval: China Telecom/China Mobile/China Unicom

* Approvals: SRRC/NAL/CCC/RoHS
