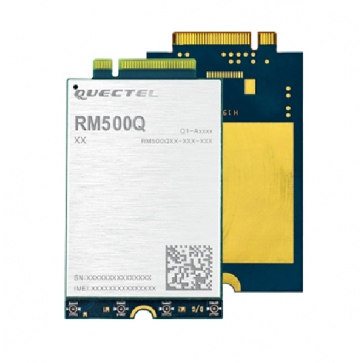

Quectel RM500Q-CN 5G Sub-6GHz M.2 Module

Quectel RM500Q-CN is a high-performance, cost-effective 5G Sub-6 GHz module in M.2 package specially designed for IoT/eMBB applications. Compliant with 3GPP Release 15 technology, it automatically adapts 5G NR NSA and SA dual-module network, supporting TDD and FDD dual-modes, and supporting dual cards. Designed in M.2 form factor, RM500Q-CN is compatible with LTE-A Cat 6 EM06, Cat 12 EM12-G, EM120R-GL and EM121R-GL, and Cat 16 EM160R-GL, it's convenient for users to move from LTE-A to 5G.

Quectel RM500Q-CN 5G Module Specifications:

* Product type: 5G NR Sub-6Ghz Module

* Form factor: M.2 package

* Target market: China

* 5G: 3GPP Release 15 NSA/SA operation，Sub-6 GHz

* Support frequency bands:
- 5G NR: n1/n28*/n41/n77/n78/n79
- MIMO(DL): 4 × 4 MIMO on n1/n41/n78/n79
- MIMO(UL): 2 × 2 MIMO on n41/n78/n79
- LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28
- LTE-TDD: B34/B38/B39/B40/B41
- WCDMA: B1/B8

* Data rates:
- 5G SA Sub-6: DL 2.1Gbps, UL 450Mbps
- 5G NSA Sub-6: DL 2.5Gbps, UL 650Mbps
- LTE: 1.0Gbps (DL)/200Mbps(UL)
- UMTS: DL 42.2Mbps, UL 11Mbps

* GNSS: GPS/GLONASS/BeiDou (Compass)/Galileo

* VoLTE: Digital Audio and VoLTE (Voice over LTE)

* Interfaces:
- (U)SIM: x1
- USB 2.0: x1
- USB 3.0/3.1: x1
- PCIe 3.0: x1
- PCM: x1
- Antenna: x4

* Software features:
- USB Drivers: Windows 7/8/8.1/10, Linux 2.6~5.12, Android 4.x~11.x
- PCIe Drivers: Linux 3.10~5.12
- RIL Drivers: Android 4.x~11.x
- USB RNDIS drivers: Linux 2.6~5.12
- USB ECM Driver: Linux 2.6~5.12
- USB NCM Driver: Linux 2.6~5.12
- USB MBIM: Windows 8/8.1/10, Linux 3.18~5.12

* Working temperature: -30°C ~ +60°C

* Dimensions: 30.0 × 52.0 × 2.3mm

* Weight: around 8.7g

* Carrier approval: China Telecom/China Mobile/China Unicom

* Approvals: SRRC/NAL/CCC/RoHS
