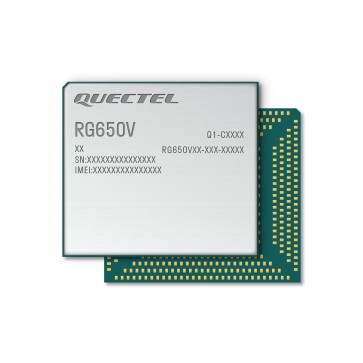

Quectel RG650V 5G Sub-6GHz IoT module

Quectel RG650V is a series of 5G LGA modules optimized specially for IoT and eMBB applications. Adopting the 3GPPRel-17 technology, it supports both 5G NSA and SA modes with Option 3x/ 3a/ 3 and Option 2 network architectures, and is backward compatible with the 4G/ 3G networks. The module can meet customers’ different application demands for high speed, large capacity, low latency, high reliability, etc.

Quectel RG650V series is an industrial-grade module for industrial and commercial applications only. The RG650V series supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BDS, Galileo and QZSS).The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0/ 3.0/ 3.1, PCIe 3.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows, Linux and Android) extend the applicability of the module to a wide range of IoT and eMBB applications such as business routers, home gateway, STB, industrial laptops, consumer laptops, industrial PDA, and rugged tablet PCs.

Highlight Features：

* 5G/4G/3G multi-mode module with LGA form factor, optimized for IoT and eMBB applications

* Both NSA and SA modes supported

* Worldwide 5G, LTE-A and 3G coverage

* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

* Feature refinements: DFOTA and VoNR / VoLTE (optional)

Quectel RG650V 5G Module Specifications:

* Product type: 5G Wireless Module

* Variant models:

Quectel RG650V-EU
--------------------------------------
* Target Region: EMEA/APAC/Brazil
* Platform: Qualcomm SDX72
* 5G NR: 3GPP Release 17 NSA/SA operation, Sub-6 GHz
* 5G NR NSA Band: n1/ 3/ 5/ 7/ 8/ 20/ 26/ 28/ 38/ 40/ 41/ 71/ 75/ 76/77/ 78
* 5G NR SA Band: n1/ 3/ 5/ 7/ 8/ 20/ 26/ 28/ 38/ 40/ 41/ 71/ 75/ 76/77/ 78
* 5G Sub-6 CA: Up to 3 DL CA, 200 MHz NR BW
* DL 4 x 4 MIMO: n1/ 3/ 5/ 7/ 8/ 20/ 26/ 28/ 38/ 40/ 41/ 71/ 75/ 76/77/ 78
* UL 2 × 2 MIMO: n1/ 3/ 5*/ 7/ 28*/ 38/ 40/ 41/ 77/ 78
* LTE Band: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 38/ 40/ 41/ 42/ 43/ 71②
* LTE DL 4 × 4 MIMO: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 38/ 40/ 41/ 42/ 43/ 71
* WCDMA Band: B1/ 5/ 8
* Interface:
- PCIe Interface × 3
- USB 3.1 Interface × 1
- USXGMII Interface × 2
- Regulatory: CE*/ RCM*

Quectel RG650V-NA
--------------------------------------
* Target Region: North America
* Platform: Qualcomm SDX72
* 5G NR: 3GPP Release 17 NSA/SA operation, Sub-6 GHz
* 5G NR NSA Band: n2/ 5/ 7/ 12/ 13/ 14/ 25/ 26/ 29/ 30/ 38/ 41/ 48/ 66/ 70*/ 71/ 77/ 78
* 5G NR SA Band: n2/ 5/ 7/ 12/ 13/ 14/ 25/ 26/ 29/ 30/ 38/ 41/ 48/ 66/ 70*/ 71/ 77/ 78
* 5G Sub-6 CA: Up to 3 DL CA, 200 MHz NR BW
* DL 4 x 4 MIMO: n2/ 5/ 7/ 12/ 13/ 14/ 25/ 26/ 29/ 30/ 38/ 41/ 48/ 66/ 70*/ 71/ 77/ 78
* UL 2 × 2 MIMO: n2/ 5/ 7/ 25/ 38/ 41/ 48/ 66/ 70*/ 71/ 77/ 78
* LTE Band: B2/ 4/ 5/ 7/ 12(17)/ 13/ 14/ 25/ 26/ 29/ 30/ 38/ 41/ 42/ 43/ 48/ 66/ 71
* LTE DL 4 × 4 MIMO: B2/ 4/ 5/ 7/ 12/ 13/ 14/ 17/ 25/ 26/ 29/ 30/ 38/ 41/ 42/ 43/ 48/ 66/ 71
* WCDMA Band:
* Interface:
- PCIe Interface × 3
- USB 3.1 Interface × 1
- USXGMII Interface × 2
- Carrier: Verizon*
- Regulatory: GCF*/ PTCRB*/ FCC*/ IC*
