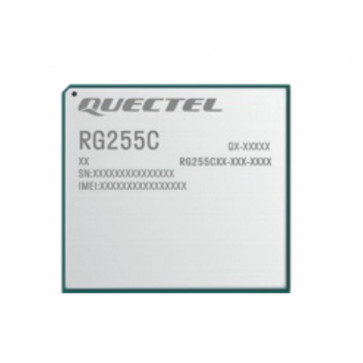

Quectel RG255C series 5G RedCap LGA/M.2/Mini PCIe Module

Quectel RG255C is a series of small LGA modules based on 3GPP Release 17 RedCap (reduced capacity) technology which supports 5G SA modes and is backwards-compatible with the 4G network. The module supports a theoretical peak data rate of 150Mbps downlink and 50Mbps uplink, while also supporting advanced 5G features such as URLLC and power saving. It is compatible with Quectel's EG2x 4G modules.

Quectel RG255C is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports L1+L5 precise and power-optimized positioning. The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of internet protocols, industry-standard interfaces (USB 2.0, PCIe 2.0, SGMII, I2C, GPIO etc.) and abundant functionalities (USB drivers for Windows, Linux and Android) allow the module to serve a wide range of applications such as industrial automation, smart cities, smart energy, wearable devices and mid-speed mobile broadband devices.

Quectel RG255C 5G module Specifications:

* Product type: 5G RedCap Module

* Chipset:

* 5G: Sub-6GHz, comply with the 3GPP Release 17 standards

* Form factor: LGA

* Dimensions: 29.0× 33.0 × 2.4mm

* 5G: 5G RedCap

* Frequency Bands:

# Quectel RG255C-NA(North America)
- 5G: n2/5/7/12/13/14/25/26/30/38/41/48/53*/66/70/71/77/78;
- LTE-FDD: B2/4/5/7/12/13/14/17/25/26/30/66/71;
- LTE-TDD: B38/41/42/43/48

# Quectel RG255C-EU(EMEA/APAC1/Brazil)
- 5G: n1/3/5/7/8/20/28/38/40/41/77/78;
- LTE-FDD: B1/3/5/7/8/20/28/71;
- LTE-TDD: B38/40/41/42/43

# Quectel RG255C-GL*(Global)
- 5G SA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/30/38/40/41/48/66/70/71/77/78/79;
- LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/30/66/71;
- LTE-TDD: B34/38/39/40/41/42/43/48

* Weight：5.2g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G: Max. 220Mbps (DL)/ Max. 100Mbps (UL)(RG255C-GL*);
- 5G: Max. 150Mbps (DL)/ Max. 50Mbps (UL)(RG255C-NA/RG255C-EU);
- LTE Max. 150Mbps (DL)/ 50Mbps (UL)

* SMS: Support SGS, IMS and NAS SMS

* Protocols: TCP/UDP/SSL/TLS/FTP(S)/HTTP(S)/MQTT(S)/SMTP(S)/NTP/PING/NITZ/LwM2M protocols

* Interfaces:
- (U)SIM × 2
- USB 2.0
- PCle: PCIe Gen2 × 1 Lane
- PCM
- GPIO
- RESET_N
- Antenna: Cellular × 2, GNSS × 1

* Enhanced Features
- MIMO:
- Voice: Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- GNSS: GPS/GLONASS/BDS/Galileo/QZSS
- (U)SIM insert Detection

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption

* Software Features
- USB Serial Driver:
> Windows 7/8/8.1/10/11,
> Linux 2.6-6.3,
> Android 4.x~ 13
- GNSS Driver: Android 4.x~ 13
- RIL Driver: Android 4.x~ 13
- NDIS Driver: Windows 7/8/8.1/10/11
- MBIM Driver: Windows 8/8.1/10/11, Linux 3.18~6.3
- Gobinet Driver: Linux 2.6~6.3
- QMI_WWAN Driver: Linux 3.4~6.3
- PCIe Driver: Windows 10/11, Linux 3.10- 6.3

* Certifications/Approvals:

* Applications: Industrial routers, industrial PDAs, rugged tablet PCs, wearable devices and digital signage
