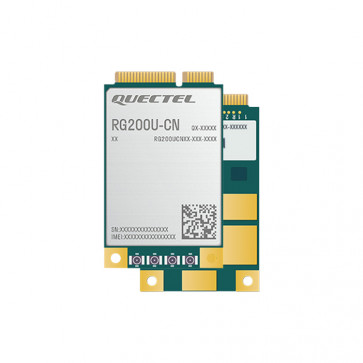

Quectel RG200U-CN Mini PCIe 5G NR Module

Quectel RG200U-CN Mini PCIe 5G Module Specifications：

* Product type: 5G Module

* Chipset: Qualcomm Snapdragon

* 5G: Sub-6GHz

* Form factor: Mini PCIe

* Dimensions: 50.95 × 30.7 × 5.3mm

* Frequency Bands:
- 5G NR Bands: n1/n28/n41/n77/n78/n79
- LTE-FDD Bands: B1/B3/B5/B8
- LTE-TDD Bands: B34/B38/B39/B40/B41
- WCDMA Bands:B1/B5/B8

* Target Market：China

* Weight：13.4g

* Temperature range:
- -30°C ~ +60°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G SA Sub-6: Max. 2Gbps (DL)/ Max. 1Gbps (UL)
- 5G NSA Sub-6: Max. 2.2Gbps (DL)/ Max. 575Mbps (UL)
- LTE-FDD: Max. 400Mbps (DL)/ Max. 150Mbps (UL)
- WCDMA: Max. 42.2Mbps (DL)/ Max. 11Mbps (UL)

* Protocols: TCP/UDP/PPP/FTP/HTTP/HTTPS /FTPS/SSL/NTP

* Interfaces:
- (U)SIM × 2, 1.8V/ 3.0V
- USB 2.0/3.0
- PCle: N/A
- PCM: N/A
- GPIO
- RESET_N
- Antenna X 4

* Enhanced Features
- MIMO:
> n41/n77/n78/n79 UL 2 × 2
> N1/41/77/78/79 DL 4 x 4
> N28 & LTE DL 2 x 2
- Audio: N/A
- VoLTE：N/A
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- GNSS: Not support
- (U)SIM insert inspect

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption
>TBD @Power off
>TBD @Sleep, Typ.
>TBD @Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10,
> Linux 2.6~5.14,
> Android 4.x ~ 11.x
- RIL Driver: Android 4.x ~ 11.x
- RNDIS Driver: Linux 2.6 ~ 5.14
- ECM Driver: Linux 2.6 ~ 5.14
- NCM Driver: Linux 2.6~5.14
- PCIe Driver: Linux 3.10~5.14, Android 4.x ~ 11.x

* Certifications/Approvals: CCC/SRRC/NAL

* Carriers: China Mobile/China Unicom/China Telecom

* Applications: 5G Wireless Router, CPE, MiFi, Industrial Router, Home Gateway etc...
