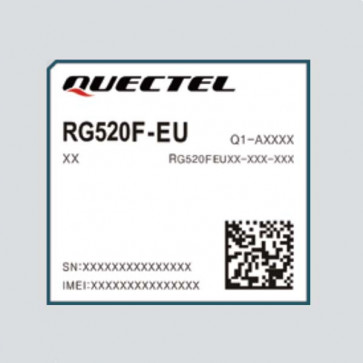

Quectel RG520F-EU LGA 5G NR Module

* Quectel 5G NR IoT Module


* Form factor: LGA package


* Target market: EMEA/Brazil


* 5G SA Sub-6 speeds: DL 6.0Gbps, UL 900Mbps


* 5G NSA Sub-6 speeds: DL 4.8Gbps, UL 525Mbps


* Control via AT Commands


* Specially designed for IoT/eMBB applications

Sign up for price alert

Availability: In stock

$499.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

* Required Fields

Details
Details

Quectel RG520F-EU LGA 5G Module Specifications:

* Product type: 5G IoT Module

* Chipset: Qualcomm Snapdragon

* 5G: Sub-6GHz

* Form factor: LGA

* Dimensions: 45.0× 48.0 × 2.85mm

* Frequency Bands:
- 5G NR Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
- LTE-FDD Bands: B1/B3/B5/B7/B8/B20/B28/B32
- LTE-TDD Bands: B38/B40/B41/B42/B43
- WCDMA Bands:B1/B5/B8

* Target Market: EMEA/Brazil

* Weight:14g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G SA Sub-6: Max. 6.0Gbps (DL)/ Max. 900Mbps (UL)
- 5G NSA Sub-6: Max. 4.8Gbps (DL)/ Max. 525Mbps (UL)
- LTE-FDD: Max. 2.0Gbps (DL)/ Max. 200Mbps (UL)
- WCDMA: Max. 42.2Mbps (DL)/ Max. 5.76Mbps (UL)

* SMS

* Protocols: TCP/UDP/FTP/HTTP/HTTPS /PING/SMS

* Interfaces:
- (U)SIM × 2, 1.8V/ 3.0V
- UART x 3
- USB 2.0/3.0/3.1
- PCle: PCIe Gen3 × 2 Lane, PCIe Gen4 × 1 Lane(Optional)
- RGMII:N/A
- PCM
- I2C x 1
- SPI
- GPIO
- ADC x 2
- SD Card
- RESET_N
- Antenna: cellular antenna x 4 + 2(optional), GNSS x 1


* Enhanced Features
- MIMO: 4 x 4 DL, UL 2 x 2
- Audio
- VoLTE:Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- GNSS: GPS/GLONASS/Beidou/Galileo
- (U)SIM insert inspect

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption
>TBD @Power off
>TBD @Sleep, Typ.
>TBD @Idle


* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10,
> Linux 3.18-5.12,
> Android Android 4.x - 11.x
- GNSS Driver: Android 4.x - 11.x
- RIL Driver: Android 4.x - 11.x
- NDIS Driver: Windows 7/8/8.1/10
- MBIM Driver: Windows 7/8/8.1/10, Linux 3.18-5.12
- Gobinet Driver: Linux 2.6~5.12
- QMI_WWAN Driver: Linux 3.4~5.12
- PCIe Driver: Windows 10, Linux 3.10~5.8, Android 4.x - 11.x


* Certifications/Approvals: GCF/CE/RCM

* Applications: Industrial Router, Indurstrial PDA, Rugged Tablet PCs etc...
