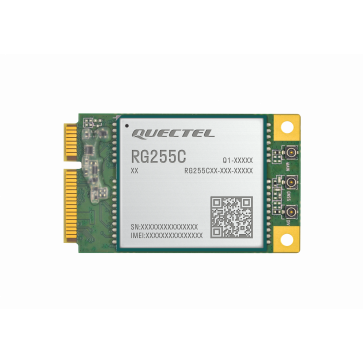

Quectel RG255C 5G RedCap Mini PCIe Module

Quectel RG255C Mini PCIe is a series of 5G Sub-6GHz modules adopting standard PCI Express® Mini Card form factor (Mini PCIe). Adopting the 3GPP Rel-17 technology, the module supports 5G LAN/ slicing/ URLLC5G, etc., with a theoretical peak data rate of 220Mbps downlink and 120Mbps uplink. The module supports SA mode, and is backward compatible with 4G networks. Two-antenna design and one-antenna design are both available.

The Quectel 5G module can meet customers' different application demands for medium speed, large capacity, low latency, high reliability, etc., and is convenient for customers to design. The RG255C Mini PCIe series contains two variants: RG255C-CN Mini PCIe and RG255C-GL Mini PCIe. It supportsQualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCIe 2.0, PCM, UART, SGMII, SPI, etc.) andabundant functionalities (USB drivers for Windows 7/ 8/ 8.1/ 10/ 11, Linux and Android) allow the module to serve a wide range of RedCap applications.

Quectel RG255C Mini PCIe 5G module Specifications:

* Product type: 5G RedCap Module

* Chipset:

* 5G: Sub-6GHz, comply with the 3GPP Release 17 standards

* Form factor: Mini PCIe

* Dimensions: 30mm × 50.95mm × 4.95mm

* 5G: 5G RedCap

* Frequency Bands:

# Quectel RG255C-NA(North America)
- 5G: n2/5/7/12/13/14/25/26/30/38/41/48/53*/66/70/71/77/78;
- LTE-FDD: B2/4/5/7/12/13/14/17/25/26/30/66/71;
- LTE-TDD: B38/41/42/43/48

# Quectel RG255C-EU(EMEA/APAC1/Brazil)
- 5G: n1/3/5/7/8/20/28/38/40/41/77/78;
- LTE-FDD: B1/3/5/7/8/20/28/71;
- LTE-TDD: B38/40/41/42/43

# Quectel RG255C-GL*(Global)
- 5G SA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/30/38/40/41/48/66/70/71/77/78/79;
- LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/30/66/71;
- LTE-TDD: B34/38/39/40/41/42/43/48

* Weight: 5.2g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G: Max. 220Mbps (DL)/ Max. 100Mbps (UL)(RG255C-GL*);
- 5G: Max. 150Mbps (DL)/ Max. 50Mbps (UL)(RG255C-NA/RG255C-EU);
- LTE Max. 150Mbps (DL)/ 50Mbps (UL)

* SMS: Support SGS, IMS and NAS SMS

* Protocols: TCP/UDP/SSL/TLS/FTP(S)/HTTP(S)/MQTT(S)/SMTP(S)/NTP/PING/NITZ/LwM2M protocols

* Interfaces:
- (U)SIM × 2
- USB 2.0
- PCle: PCIe Gen2 × 1 Lane
- PCM
- GPIO
- RESET_N
- Antenna: Cellular × 2, GNSS × 1

* Enhanced Features
- MIMO:
- Voice: Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- GNSS: GPS/GLONASS/BDS/Galileo/QZSS
- (U)SIM insert Detection

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption

* Software Features
- USB Serial Driver:
> Windows 7/8/8.1/10/11,
> Linux 2.6-6.3,
> Android 4.x~ 13
- GNSS Driver: Android 4.x~ 13
- RIL Driver: Android 4.x~ 13
- NDIS Driver: Windows 7/8/8.1/10/11
- MBIM Driver: Windows 8/8.1/10/11, Linux 3.18~6.3
- Gobinet Driver: Linux 2.6~6.3
- QMI_WWAN Driver: Linux 3.4~6.3
- PCIe Driver: Windows 10/11, Linux 3.10- 6.3

* Certifications/Approvals:

* Applications: Industrial routers, industrial PDAs, rugged tablet PCs, wearable devices and digital signage
