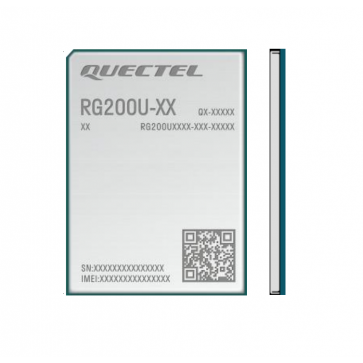

Quectel RG200U-JO 5G NR LGA Module

Quectel RG200U-JO LGA 5G Module Specifications：

* Product type: 5G Module

* Chipset: Qualcomm Snapdragon

* 5G: 3GPP Release 15 SA operation，Sub-6 GHz

* Form factor: LGA

* Dimensions: 30.0× 41.1 × 2.85mm

* Frequency Bands:
- 5G NR Bands: n78
- LTE-FDD Bands:
- LTE-TDD Bands:
- WCDMA Bands:

* Target Market：India

* Weight：8.2g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G SA Sub-6: Max. 2Gbps (DL)/ Max. 1Gbps (UL)

* Protocols: TCP/UDP/PPP/FTP/HTTP/HTTPS /FTPS/SSL/NTP

* Interfaces:
- (U)SIM × 2
- USB 2.0 x 1
- USB 3.0 x 1
- PCle: PCIe 2.0 × 1
- SDIO x 1
- SPI x 1
- UART x 2
- I2S x 1
- I2C x 1
- PCM x 1
- ADC x 1
- Antenna X 4

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10/11,
> Linux 2.6~6.5,
> Android 4.x ~ 13.x
- RIL Driver: Android 4.x ~ 13.x
- PCIe Driver: Linux 3.10~6.5
- USB RNDIS Driver: Windows 7/ 8/ 8.1/ 10/ 11, Linux 3.1 ~6.5
- USB ECM Driver: Linux 2.6 ~ 6.5
- USB NCM Driver: Linux 2.6~ 6.5

* Certifications/Approvals: RoHS/ WHQL/GCF

* Carriers:

* Applications: 5G Wireless Router, CPE, MiFi, Industrial Router, Home Gateway etc...
