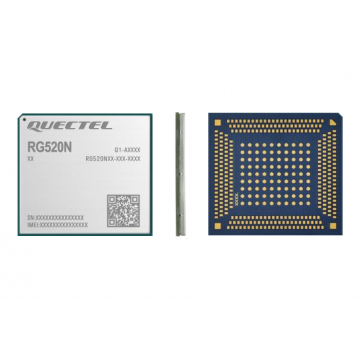

Quectel RG520N-EB 5G Sub-6 GHz LGA Module

Quectel RG520N-EB is a 5G Sub-6 GHz LGA module optimized specially for IoT and eMBB applications. Adopting the 3GPP Rel-16 technology, it supports both 5G NSA and SA modes with Option 3x/3a and Option 2 network architectures, which makes it backwards compatible with 4G/3G network. It is pin-to-pin compatible with Quectel 5G module RG50xQ series and LTE-A Cat 12 module EG512-EA. The 5G module can meet customers' different application demands for high speed, large capacity, low latency, high reliability, etc.

Quectel RG520N-EB supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0/3.0/3.1, PCIe 3.0/4.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows 7/8/8.1/10/11, Linux and Android) extend the applicability of the module to a wide range of IoT and eMBB applications such as business routers, home gateway, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and video surveillance.

Quectel RG520N-EB 5G Module Specifications:

* Product type: 5G Wireless Module

* Chipset: Qualcomm SDX62

* Target region: EMEA/ APAC/ Brazil

* Dimensions (mm): 41.0 × 44.0 × 2.75

* Temperature Range
- Operating Temperature -30 °C to +75 °C -30 °C to +75 °C
- Extended Temperature -40 °C to +85 °C

* 5G
- 5G NR: 3GPP Rel-16 NSA/SA operation, Sub-6 GHz
- 5G NR NSA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/40/ 41/ 71/ 75/ 76/ 77/ 78
- 5G NR SA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/40/ 41/ 71/ 75/ 76/ 77/ 78
- Sub-6 CA: Max. Sub-6 BW: 120 MHz
- FDD + FDD, TDD + TDD, FDD + TDD DL 2CA/ UL 2CA
- DL 4 × 4 MIMO: n1/ 3/ 7/ 38/ 40/ 41/ 71/77/ 78
- UL 2 x 2 MIMO: n38/ 40/ 41/ 77/ 78

* 4G LTE
- LTE Category DL Cat 19/UL Cat 18
- LTE: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/38/ 40/ 41/ 42/ 43/ 71
- DL 4 × 4 MIMO: B1/ 3/ 7/ 38/ 40/ 41/ 42/43/ 71

* WCDMA B1/B5/B8

* GNSS: GPS/GLONASS/BDS/Galileo/QZSS

* Regulatory
- Global: GCF*
- Europe: CE
- Australia/New Zealand: RCM

* Data Rates (Max.)②
- 5G SA Sub-6: 2.4 Gbps (DL)/900 Mbps (UL)
- 5G NSA Sub-6: 3.4 Gbps (DL)/550 Mbps (UL)
- LTE: 1.6 Gbps (DL)/200 Mbps (UL)
- WCDMA: 42 Mbps (DL)/5.76 Mbps (UL)

* Interfaces
- (U)SIM × 2
- UART × 4
- SD Card × 1
- USB 2.0/3.0/3.1 × 1
- PCIe 3.0/4.0 Gen3, Lane × 2 or Gen4, Lane × 1
- PCM × 1
- I2S × 1
- I2C × 1
- SPI × 1
- ADC ●
- RESET_N ●
- GPIOs (QuecOpen®) ●
- Antenna Cellular: 4 + 2 (optional); GNSS: × 1

* VoLTE: Digital Audio and VoLTE (Voice over LTE) (optional)

* Drivers
- USB Serial Driver: Windows 7/8/8.1/10/11; Linux 2.6–5.15; Android 4.x–12.x
- RIL Driver: Android 4.x–12.x
- PCIe MHI Driver Linux 3.10–5.15
- USB NDIS Driver Windows 7/8/8.1/10/11
- USB MBIM Driver Windows 10/11; Linux 3.18–5.15
- USB GobiNet Driver Linux 2.6–5.15
- USB QMI_WWAN Driver Linux 3.4–5.15

* Supply Voltage: Range 3.3–4.4 V, typ. 3.8 V
