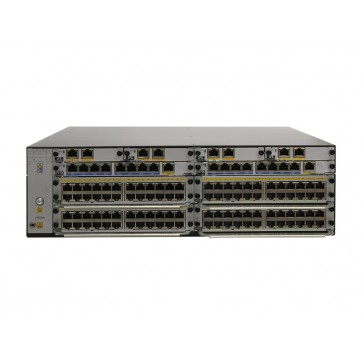

Huawei AR3260-S Enterprise Router

Huawei AR3260-S enterprise router is a next-generation enterprise-class router based on the Huawei proprietary Versatile Routing Platform (VRP), which take advantage of Huawei long-term accumulation in data communication, wireless, access network, and core network fields. The Huawei AR3260-S integrates routing, switching, 3G, voice, and security functions. It uses the multi-core CPU and non-blocking switching structure and provides industry-leading system performance and extensibility, meeting service development requirements in the future. The AR3260-S router provides an integrated solution for enterprise networks, speeds up multi-service provision, and protects customers' investments.

Huawei AR3260-S uses the embedded hardware encryption technique and supports the voice Digital Signal Processor (DSP). It supports firewall functions, call processing, voice mail, and various application programs. The Huawei AR3260-S supports various wired and wireless access modes, such as E1/T1, xDSL, CPOS, and 3G.

Huawei AR3260-S features and specifications:

-- Hardware

* Forwarding capacity: 2 Mpps (standard), 3.5 Mpps (enhanced)

* WAN speed with services: 1000Mbps

* Device switching capacity: 160Gbps

* Slot switching bandwidth: SIC & WSIC slots 2Gbps, XSIC & EXSIC slots 20Gbps

* Fixed WAN ports: 3*GE (two combo ports)

* SIC slots: 4

* WSIC slots: 2

* XSIC slots(default/max**): 4/6

* EXSIC slots (share with XSIC): 1

* DSP slots: 3

* USB 2.0 ports: 2

* Mini-USB ports: 1

* Serial auxiliary/console port: 1

* Memory: 2 GB

* Flash(default/max): 2 GB/4 GB

* Max. power: 350 W

* AC voltage: 100 V-240 V

* Frequency: 50 Hz/60 Hz

* Dimensions (width x depth x height): 442 mm x 470 mm x 130.5 mm

* Weight: 11KG (without power supply and interface cards)

* Ambient temperature: 0°C-40°C

* Relative humidity: 5-90% (non-condensing)

-- Software

* Voice: RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call

* 3G: CDMA 2000 EV-DO Rev A, WCDMA, TD-SCDMA, individual 3G uplink/backup link

* LAN: IEEE 802.1, IEEE 802.3, VLAN management, MAC address management, MSTP

* IPv4 unicast routing: Routing policy, static route, RIP, OSPF, IS-IS, BGP

* Multicast: IGMP version1/2/3, IGMP-Snooping version1/2/3, PIM SM, PIM DM, MSDP

* MPLS: LDP, MPLS L3 VPN, static LSP, dynamic LSP

* VPN: IPSec VPN, GRE VPN

* QoS: MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), H-QoS, FR QoS

* Voice: RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call

* Security: ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing

* Management and maintenance: Upgrade management, device management, Web network management system, GTL, SNMP, RMON, RMON2, NTP, CWMP, Auto-Config, deployment using USB disk, NetConf
