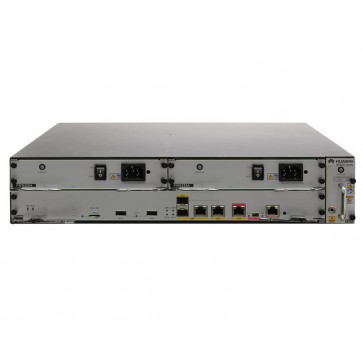

Huawei AR2240-S Gigabit Enterprise Router
* WAN speed with services: 600 Mbps
* Firewall Performance: 3Mpps
* Fixed WAN ports: 3 * GE (2 * Combo)/4 * GE Combo+ 2 * 10 GE + 2 * USB2.0
* Processor: 8-core 600 MHZ
* FDD LTE: Uplink: 50Mbit/s Downlink: 100Mbit/s
Availability: In stock
Huawei AR2240-S router is a next-generation enterprise-class router based on the Huawei proprietary Versatile Routing Platform (VRP). The modular-chassis router integrates routing, switching, 3G service, voice, and security functions. Users customize the routers by selecting the interface cards that meet their requirements.
Huawei AR2240-S uses the embedded hardware encryption technique and support a voice-optimized Digital Signal Processor (DSP). It provides firewall security, call processing, voice mail, and other application programs.
Huawei AR2240-S router supports wired and wireless access modes, including E1/T1, xDSL, xPON, CPOS and 3G. Building on Huawei’s leading data communication and networking technologies, they provide industryleading system performance and scalability to meet current and future business needs.
Huawei AR2240-S features and specifications:
* WAN speed with services: 600 Mbps
* Firewall Performance: 3Mpps
* Fixed WAN ports: 3 * GE (2 * Combo)/4 * GE Combo+ 2 * 10 GE + 2 * USB2.0
* Processor: 8-core 600 MHZ
* FDD LTE: Uplink: 50Mbit/s Downlink: 100Mbit/s
* 3G: CDMA 2000EV-DO Rev A, WCDMA, individual 3G uplink/backup link
* SIC Slots: 4
* WSIC Slots (default/max): 2/4
* XSIC slots (default/max): 2/4
* EXSIC slot (shared with XSIC slots): 1
* DSP slots: 0/3
* USB 2.0 ports: 2
* Mini-USB Ports: 1
* Serial Auxiliary/Console Port: 1
* Memory Size/Flash Memory: 2 GB/ 16MB
* AC Power: 100V to 240V
* Frequency: 50 Hz/60 Hz
* Maximum power consumption: 97W
* Weight: 19.7 lb. (8.95 kg) without power module and interface card
* Operating environment Temperature: 0°C to 45°C
* Relative Humidity: 5% to 95% (non-condensing)
* Voice: RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, SBC, H.323 gatekeeper
* Basic features: DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, Subinterface management
* WLAN(AC): AP management(AC discovery/AP access /AP management),CAPWAP,WLAN user management, WLAN radio management(802.11a/b/g/n, WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management)
* LAN: IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP
* IPv4 unicast routing: Routing policy, static route, RIP, OSPF, IS-IS, BGP
* IPv6 unicast routing: Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+
* Multicast: IGMP v1/v2/v3, IGMP-Snooping v1/v2/v3, PIM SM, PIM DM, MSDP
* MPLS: LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
* VPN: IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN, Smart VPN
* QoS: DiffServ mode, MPLS QoS, priority mapping, traffic policing with Committed Access Rate (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCPbased WRED), congestion management (LAN interface: SP, WRR, SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, FR QoS, Smart Application Control (SAC), Hard QoS(SRU80 Main Boards support)
* Security: ACL, firewall, 802.1x authentication, MAC address authentication, Web Authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing
* Management and maintenance: Upgrade management, device management, web-based GUI, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, NetConf, CLI
* Dimensions (H x W x D): 3.5 in. x 17.4 in. x 18.5 in. (88.1 mm x 442 mm x 470 mm)
