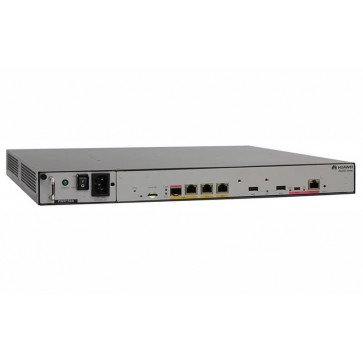

Huawei AR2220-S Enterprise Router
* WAN speed with services(IMIX): 400 Mbps
* Fixed port: 3xGE (one combo port)
* Slot: 4xSIC + 2xWSIC
* Switching capacity: 32 Gbps
Availability: In stock
Huawei AR2220-S is a next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP). These modular-chassis routers integrate routing, switching, 3G service, voice, and security functions. Users customize the routers by selecting the interface cards that meet their requirements. The AR2200-S Router use the embedded hardware encryption technique and support a voice-optimized Digital Signal Processor (DSP). They provide firewall security, call processing, voice mail, and other application programs.
Huawei AR2220-S Enterprise Router features:
* WAN speed with services(IMIX): 400 Mbps
* Fixed port: 3xGE (one combo port)
* Slot: 4xSIC + 2xWSIC
* Switching capacity: 32 Gbps
Huawei AR2220-S Technical Specifications:
* WAN speed with services: 400 Mbps
* Firewall performance (large packets): 1.9 Gbps
* Device switching capacity: 32 Gbps
* Slot switching bandwidth: SIC slots (slot 1,3) 2 Gbps, SIC slots (slot 2,4) 5 Gbps, WSIC slots 5 Gbps, XSIC & EXSIC slots 20 Gbps
* Fixed WAN ports: 3 * GE(1 x combo port)
* SIC slots: 4
* WSIC slots (default/max): 2/4
* XSIC slots(default/max**): 0/2
* EXSIC slot(shared with XSIC slots): 0
* DSP slots: 1
* USB 2.0 ports: 2
* Mini-USB ports: 1
* Serial auxiliary/console port: 1
* Memory: 2GB
* Flash(default/max**): 2GB/4GB
* AC power: 100 V-240 V
* Maximum power: 150 W
* Frequency: 50 Hz/60 Hz
* DC power: -48 V~-60 V
* Dimensions (width x depth x height): 44.5 mm x 442mm x 420 mm
* Weight: 4.95 KG (without power module and interface card))
* Ambient temperature: 0°C-45°C
* Relative humidity: 5-90% (non-condensing)
Software:
* Basic features: DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, Subinterface management
* Voice: RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, SBC, H.323 gatekeeper
* 3G: CDMA 2000 EV-DO Rev A, WCDMA, individual 3G uplink/backup link
* LAN: FDD LTE: Uplink: 50Mbit/s Downlink: 100Mbit/s
* WLAN(AC): AP management(AC discovery/AP access /AP management),CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n, WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management)
* LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP
* IPv4 unicast routing: Routing policy, static route, RIPng, OSPF, IS-IS, BGP
* IPv6 unicast routing: Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+
* Multicast: IGMP V1/V2/V3, IGMP-Snooping V1/V2/V3, PIM SM, PIM DM, MSDP
* MPLS: LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
* VPN: IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN, Smart VPN
* QoS: DiffServ mode, MPLS QoS, priority mapping, traffic policing with Committed Access Rate (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCPbased WRED), congestion management (LAN interface: SP, WRR, SP+WRR; WAN
* Qos interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, FR QoS, Smart Application Control (SAC), Hard QoS(SRU80 Main Boards support)
* Security: ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing
* Management and maintenance: Upgrade management, device management, web-based GUI, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, NetConf, CLI
