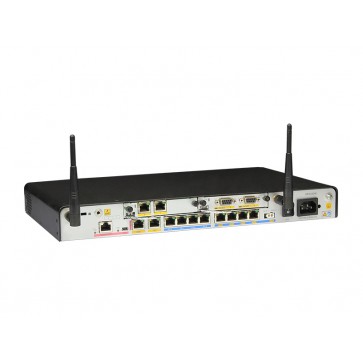

Huawei AR1220W-S Enterprise Router

Huawei AR1220W-S wireless router includes 2GE WAN,8FE LAN,802.11b/g/n AP,2 USB,2 SIC,1GB Memory and up to 400Mbps system throughput. The AR1200's non-blocking architecture and multi-core CPU deliver resilient bandwidth for security and data traffic. The comprehensive security features, fault detection, and dynamic hot-swapping ensure safe, secure, scalable communications. The wireless controller features integrated by default to support up to 12 Wireless access point for centralization of management of the wireless connection to provide better wireless network security and scalability. Huawei Wireless router AR1220W-S is the optimal solution for small enterprise or branch offices with no IP voice needs.

Huawei AR1220W-S integrates routing, switching, 3G service, Wireless LAN (WLAN), voice, and security functions. Huawei AR1220W-S uses embedded hardware encryption and supports a voice-optimized Digital Signal Processor (DSP). The router supports firewall security, call processing, voicemail, and other applications. It supports wired and wireless access modes, including E1/T1, xDSL, xPON, Wi-Fi, 3G, and more.

Huawei AR1220W-S Features and Specifications:

* WAN speed with services (IMIX): 200 Mbit/s

* Device Switching Capacity: 8 Gbit/s

* Slot Switching Bandwidth: SIC & WSIC slots(2 Gbit/s)

* Number of Recommended Users: 100

* Fixed WAN Ports: 2 x GE

* Fixed LAN Ports: 8 x GE (can be configured as WAN interfaces)

* 3G WCDMA/LTE: FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s

* Wireless Controller: Wireless Controller is integrated in software

* Maintenance: All interface cards support hot swapping/U-disk deployment supported

* WiFi: 802.11b/g/n

* SIC Slots: 2

* WSIC Slots (default/max): 0/1

* USB 2.0 Ports: 2

* Mini-USB Ports: 1

* Serial Auxiliary/Console Port: 1

* Memory: 512 MB

* Max. Power: 54W

* AC Power: 100V to 240V

* PoE power: External 100 W

* Frequency: 50 Hz/60 Hz

* Dimensions (H x W x D): 44.5 mm x 390 mm x 220 mm

* Weight: 2.9 kg (without interface cards)

* Ambient Temperature: 0°C to 45°C

* Relative Humidity: 5% to 95% (non-condensing)

---Software

* Basic Features: DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management

* Voice: RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features)

* WLAN (AP): AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features)

* WLAN (AC): AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)

* 3G: 3G Interface card (WCDMA)

* LTE: LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)

* LAN: IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP

* IPv4 Unicast Routing: Routing policy, static route, RIP, OSPF, IS-IS, and BGP

* IPv6 Unicast Routing: Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

* Multicast: IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP

* MPLS: LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

* VPN: IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN

* QoS: DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC)

* Security: ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing

* Management and maintenance: Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI
