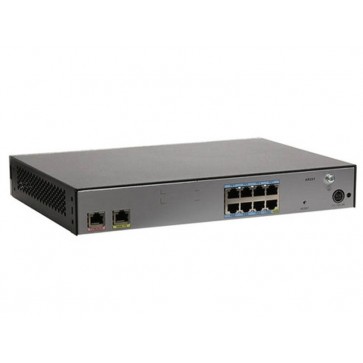

Huawei AR201-S Enterprise Router

Huawei AR201-S enterprise router provides routing and switching functionality for small business or branch offices. Huawei AR G3 AR201-S equips 1FastEthernet WAN,8FastEthernet LAN,1USB and provides total 150Mbps system capacity. Dual-core processor separate data and control planes to ensure the high performance. Robust security feature include build-in, comprehensive authentication, defense mechanisms and a broad range of VPN options.

Huawei AR201-S features and specifications:

* WAN speed with services (IMIX): 150 Mbps

* Fixed ports: 8 x FE LAN(can be configured as WAN interfaces), 1 x FE WAN, 1 USB 2.0 port

* Number of recommended users: 50

* Memory size/Flash memory: 512MB

* Maximum power: 36 W

* Power supply(AC): 100 V to 240 V

* Operating temperature: 0℃ to 45℃

* Relative humidity: 5% to 95% (noncondensing)

* Frequency: 50Hz

* Basic features: DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, Sub interface management

* Voice: RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, SBC (Only voice models support voice features)

* WLAN(AP): AP management, WLAN QoS, WLAN security, WLAN radio management, WLAN user management(Only WLAN models support WLAN AP features)

* WLAN(AC): AP management(AC discovery/AP access/AP management),CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n),WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management)

* LAN: IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.

* IPv4 unicast routing: Routing policy, static route, RIP, OSPF, IS-IS, BGP

* IPv6 unicast routing: Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+

* Multicast: IGMP version1/2/3, PIM SM, PIM DM, MSDP

* VPN: IPSec VPN, GRE VPN, DSVPN, L2TP VPN, Smart VPN

* QoS: Diffserv mode, Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), Hierarchical QoS, Smart Application Control (SAC)

* Security: ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, PKI

* Management and maintenance: Upgrade management, device management, web-based GUI, GTL, SNMP(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, NetConf, CLI

* Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)
