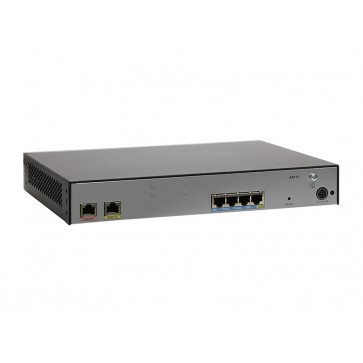

Huawei AR121-S AR120 Series Enterprise Router

Huawei AR121-S Router Features and Specifications:

* Model: Huawei Router [AR121-S]

* Brand Name: Huawei

* Series: AR120 Series

* Frequency: 50/60 Hz

* Fixed ports: 1x FE WAN, 4x FE LAN

* WAN Speed with Services (IMIX): 100 Mbit/s

* AC Power Supply

* Processor: dual-core 533 MHz

* Memory Size/Flash Memory: 512MB/512MB

* Forwarding Performance: 300kpps

* IP Routing: IPv4 and IPv6 static route, RIP,RIPng,OSPFv2,OSPFv3,ISIS,ISISv6,BGP

* VPN: IPSec VPN, EVPN, L2TP VPN,DSVPN

* Wlan: IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP

* Qos: MQC, priority mapping, traffic policing CAR, traffic shaping, congestion avoidance based on IP prece

* Routing Features: Static route, RIP, and BGP, Static route, RIPng, and BGP4+, IGMP version 1/2/3, MLD

* Security: ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, broadcast storm sup

* Operating Temperature: 0℃ to 45℃

* Storage temperature: -40°C to +70°C

* Power Supply: 100-240 V

* Power Consumption: 24 Watts

* Device Management: Upgrade management, device management, webbased GUI, RMON, NTP, autoconfig, site deployment

* Vpn: IPSec VPN, GRE VPN, and L2TP VPN

* Features: ARP, PBR, DNS, DHCP, and NAT

* Relative Humidity: 5% to 95%, noncondensing

* Operating altitude: < 5000 m

* Maximum output power:150W

* Dimensions: 44.5 x 300 x 200 mm
