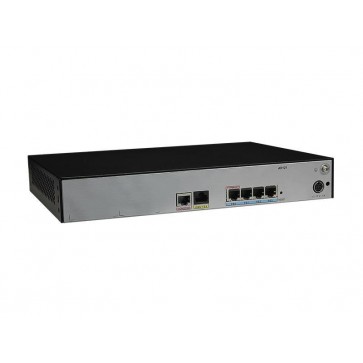

Huawei AR121W AR G3 Series Enterprise Router

Huawei next-generation wireless router AR121W is designed for the enterprise branch or small business to deliver a comprehensive set of services which include routing, switching and wireless access. The AR121 comes with fixed 1 * 10/100 WAN interface and 4 * 10/100 switching LAN interface, security functions, wireless AP management and wireless capability all in one device. Huawei AR121W is a mature, stable and quiet router and deliver the high performance functionality for small network which greatly increase productivity with lower the cost. the router is easy to deploy, configure and customize to greatly reduce the cost of deployment and maintenance.

Huawei AR121W Enterprise Router Technical Specifications:

* WAN speed with services (IMIX): 50Mbps

* IPSec VPN Tunnels: 75

* Number of recommended users: 20

* Fixed WAN ports: 1 x FE

* Fixed Ethernet switching ports: 4 x FE(can be configured as WAN interfaces)

* WLAN: 802.11 b/g/n

* USB 2.0 ports: 1

* Console ports: 1

* Memory size: 256MB

* Flash memory: 256MB

* Maximum power: 24W

* Power supply(AC): 100V to 240V

* Operating temperature: 0℃ to 45℃

* Relative humidity: 5% to 95% (noncondensing)

* Basic features: ARP , PBR, DNS, DHCP, NAT

* IPv4 routing: static route, RIP, BGP

* IPv6 routing: static route, RIPng, BGP4+

* Multicast: IGMP version1/2/3,MLD

* VPN: IPSec VPN, GRE VPN, L2TP VPN

* Security: ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, blacklist, IP source tracing, PKI, HTTPS

* LAN: IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc

* WLAN(AC) AP management(AC discovery/AP access/AP management),CAPWAP,WLAN user management , WLAN radio management（802.11a/b/g/n）,WLAN QoS（WMM), WLAN security（WEP/WPA/WPA2/Key management）

* Dimensions: 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)
