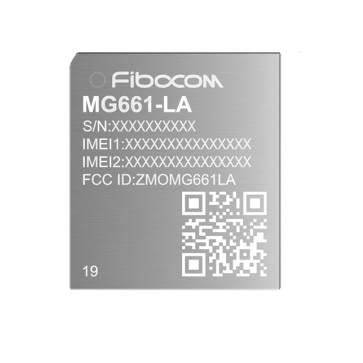

Fibocom MG661-LA LTE Cat 1 bis IoT Module

Fibocom MG661-LA is a high-performance LTE Cat1 bis wireless communication module with an LGA package, measuring 17.7±0.15mm15.8±0.15mm2.4±0.2mm. It supports 4G frequency bands for operators in the Latin America region. MG661-LA is equipped with rich network protocols, integrated with multiple universal interfaces, and supports various drivers and software functionalities (such as mainstream operating systems like Windows, Android, Linux), meeting diverse application demands in the IoT industry. Positioned for the mid-to-low data rate IoT market, MG661-LA caters to various applications such as trackers, security monitoring, in-vehicle, mobile payment, shared economy, industrial IoT, and more. It provides a seamless wireless experience for customers in these fields.

Fibocom MG661-LA is an LTE-only wireless communication module designed with a small footprint to meet the requirements of customers for compact hardware design.

Fibocom MG661-LA Module Specifications:

* Target region: India

* Package: LGA

* Dimension (mm): 17.7x15.8x2.4

* Frequency bands:
LTE FDD: B2/3/4/5/7/8/28/66
LTE TDD: NA

* Power Supply: <3.4V ~ 4.3V (Typical 3.8V)

* Operating Temp: -35°C ~ +75°C

* Extended Temp: -40°C ~ +85°C

* Data Transmission
LTE FDD (Mbps): 10.3(DL)/5.1(UL)

* Functions
Wi-Fi Scan
●
SIM x2
BLE NA
eCALL NA
OpenCPU Optional
MUX NA
Dual SIM Optional
Jamming Detection NA
USSD NA
STK NA
LBS NA
FOTA DFOTA
OS Drivers Linux/Windows/Android
GNSS NA
MMS NA
CSD NA
TTS NA
SMS ●
Audio< NA
Voice Code NA
Audio Play/Record NA
Protocols TCP/UDP/HTTP(S)/FTP(S)/MQTT/SSL/TLS/Built in protocol stack support IPV6

* Interfaces
SIM x2
USB x1, USB2.0
PCIe NA
UART x2
SPI ●
ADC x2
GPIO ●

* Regulation: FCC/Anatel/RoHS
