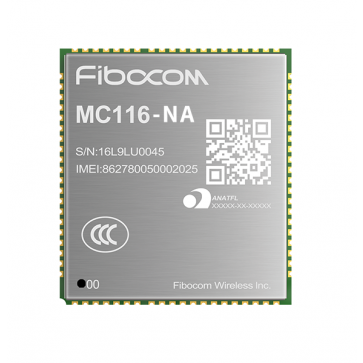

Fibocom MC116-NA LTE Cat 1 Module

Based on Qualcomm platform, the Fibocom MC116-NA module adopts LCC+LGA form factor and is pin-to-pin compatible with the Fibocom LTE Cat 4 module NL668. Fibocom’s MC116-NA module supports LTE FDD frequency bands, with a theoretical downlink peaking at 10 Mbps and an uplink of 5 Mbps. Additionally, the Fibocom MC116-EUL module is backward compatible with WCDMA/ GSM frequency bands, which helps to reduce the complexity of deployment.

Fibocom MC116-NA module supports Windows, Linux and Android operating systems. With a rich extension of interfaces including SIM 1.8V/3.0V, USB2.0, UART, I2C etc., the LTE Cat 1 module MC116 can be widely applied in IoT scenarios such as telematics, smart payments, public security, asset tracking and so on.

Fibocom MC116-NA Module Specifications:

* Target region: North America

* Package: LCC+LGA

* Dimension (mm): 32.0 x 29.0 x 2.4

* Frequency bands:
LTE FDD: B2/4/5/12/13/17/66

* Power Supply: <3.4V ~ 4.3V (Typical 3.8V)

* Operating Temp: -35°C ~ +75°C

* Extended Temp: -40°C ~ +85°C

* Data Transmission
LTE FDD (Mbps): 10(DL)/5.1(UL)

* Functions
WiFi&BlueTooth NA
SIM ●
eSIM NA
eCALL NA
OpenCPU NA
MUX ●
Dual SIM NA
Jamming Detection NA
USSD ●
STK NA
LBS ●
FOTA DFOTA
OS Drivers: Linux/Windows/Android
GNSS ●
MMS NA
CSD NA
TTS NA
SMS ●
Audio ●
Voice Code: NA
Audio Play/Record ●
Protocols: TCP/UDP(S)/HTTP(S)/FTP(S)/IPV4/IPV6/SSL/MQTT/LWM2M

* Interfaces
SIM x1, 1.8V/ 3.0V
USB x1,USB2.0
PCIe NA
UART x2
SPI ●
ADC x2
GPIO ●

* Regulation: RoHS/FCC/IC

* Operator: AT&T*/VZW*

* Industry: GCF/PTCRB
