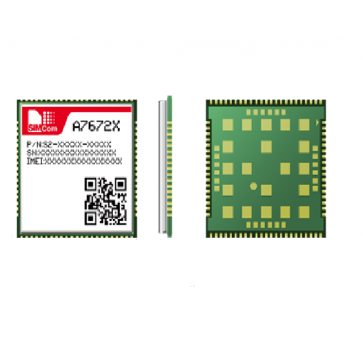

SIMCOM A7672X 4G LTE Cat1 LGA + LCC Module

SIMCOM A7672X is the LTE Cat 1 module that supports wireless communication modes of LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. It has three variant models: A7672S, A7672E, A7672SA.

SIMCOM A7672X adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.

SIMCOM A7672X supports both multiple built-in network protocols and the drivers for main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. A7672E also supports BLE* and GNSS* and it integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, POS, surveillance devices, industrial routers, and remote diagnostics etc.

SIMCOM A7672X Module Specifications:

* Product type: 4G LTE IoT Module

* Form factor: LGA + LCC

* Dimensions: 24.0*24.0*2.4mm

* Frequency bands：
- SIMCOM A7672S supports:
> LTE-FDD: B1/B3/B5/B8
> LTE-TDD: B34/B38/B39/B40/B41
> GSM: 900/1800MHz

- SIMCOM A7672E supports:
> LTE-FDD: B1/B3/B5/B7/B8/B20

- SIMCOM A7672SA supports:
> LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

* Temperature: -40℃ ~ +85℃

* LTE Data rates: DL 10Mbps/UL 5Mbps

* GPRS/EDGE(Kbps) Speeds: 236.8(DL)/236.8(UL)

* Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS

* Android RIL: Android 5.0/6.0/7.0/8.0/9.0

* USB Driver: Microsoft Windows 7/8/10, Linux/Android

* Firmware Upgrade: USB/FOTA

* Interfaces:
- SIM Card: 1.8V/3.0V
- UART
- USB
- ADC
- GPIO
- I2C
