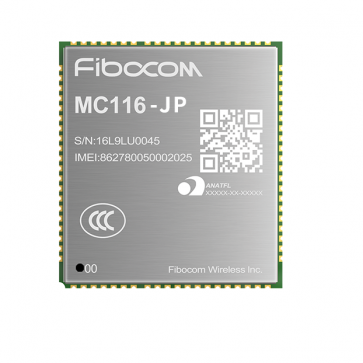

Fibocom MC116-JP LTE Cat 1 Module

Fibocom MC116-JP is a LTE Cat1 wireless communication module adopting LCC+LGA form factor, with the size of 32mm*29mm*2.4mm. It is pin-to-pin compatible with Fibocom’s LTE Cat 4 module NL668, which is convenient for customers to migrate between different technologies at the lowest cost.

Fibocom MC116-JP supports LTE FDD network, covering the frequency bands of operators in Japan. The module also supports multi-constellation GNSS receiver (GPS/ Galileo/ GLONASS/ BeiDou), which provides highperformance positioning and navigation while greatly simplifies product design. With a rich extension of interfaces including USB/ UART/ ADC/ PCM/ SGMII, the LTE Cat 1 module MC116-JP enables much flexibility and ease of integration to meet various application demands of the IoT industry.

The Fibocom MC116-JP is perfectly suitable for low and mid-speed IoT scenarios, such as telematics, security, ATM/POS, C-V2X, etc., providing customers with reliable connectivity and robust security.

Fibocom MC116-JP Module Specifications:

* Target region: Japan

* Package: LCC+LGA

* Dimension (mm): 17.7x15.8x2.4

* Frequency bands:
LTE FDD: B1/3/8/18/19/26
LTE TDD: NA

* Power Supply: <3.4V ~ 4.3V (Typical 3.8V)

* Operating Temp: -35°C ~ +75°C

* Extended Temp: -40°C ~ +85°C

* Data Transmission
LTE FDD (Mbps): 10(DL)/5.1(UL)

* Functions
SIM ●
eSIM NA
eCALL NA
OpenCPU NA
MUX ●
Jamming Detection NA
USSD ●
STK NA
LBS ●
FOTA DFOTA
OS Drivers: Linux/Windows/Android
GNSS ●
MMS NA
CSD NA
TTS NA
SMS ●
Audio ●
Voice Code: NA
Audio Play/Record ●
Protocols: TCP/UDP(S)/HTTP(S)/FTP(S)/IPV4/IPV6/SSL/MQTT/LWM2M

* Interfaces
SIM x1, 1.8V/ 3.0V
USB x1,USB2.0
PCIe NA
UART x2
SPI ●
ADC x2
GPIO ●

* Regulation: HF/RoHS/JATE/TELEC

* Operator: DOCOMO*/KDDI*
