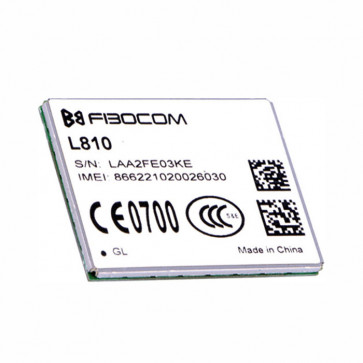

Fibocom L810 L810-GL LTE Cat6 LGA Module

* LTE Cat6 cellular module


* LTE DL 300Mbps/UL 50Mbps


* Support LTE Band 1/3/5/7/8/20/38/39/40/41


* Form factor: 144 pin LGA


* Target region: China, Part of APAC, Europe

Sign up for price alert

Availability: In stock

$159.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Fibocom L810 series are LGA-packed LTE wireless communications modules which support 5 MODES(FDD-LTE/TDD-LTE/WCDMA/TD-SCDMA/GSM) and 11 bands. The modules support FDD/TDD based LTE network and the 3G fallback.


The network connection speed of L810 modules is up to Cat6 300Mbps for downloading and 50Mbps for uploading, which makes them suitable for the mobile network. Fibocom L810 series can be widely used in consumer electronics, telematics, wireless payment, security, gateway etc...


Fibocom L810 (L810-GL) Specifications and Features:

* LTE Cat6 Module

* Form factor: LGA 144pin

* Support 4G LTE FDD Band 1, 3, 5, 7, 8, 20

* Support 4G LTE TDD Band 38,39,40,41

* Support 3G WCDMA: Band 1,8 and TD-SCDMA Band 34, 39

* Support 2G GSM/GPRS/EDGE: 900/1800MHz

* Current Consumption: 5mA@sleep mode(DRX9)

* TX power
- LTE FDD:22.5dBm
- LTE TDD:22.5dBm
- WCDMA:22.5dBm
- TD-SCDMA:22.5dBm
- GSM:900 32.5dBm
- DCS:1800 29.5dBm


* RX Sensitivity
- LTE FDD:-99dBm ~ -102dBm
- LTE TDD:-99.5dBm ~ -100dBm
- TD-SCDMA:-109.5dBm
- WCDMA:-109dBm
- GSM:-108dBm


* AT Command Set:FIBOCOM proprietary AT commands GSM 07.05/GSM 07.07

* LTE FDD Speed: Cat 6 (300Mbps DL, 50Mbps UL)

* LTE TDD Speed: Cat 4 (112Mbps DL, 10Mbps UL)

* 3G UMTS/HSPA: DC-HSDPA 42Mbps (Cat24), HSUPA 5.76Mbps (Cat6)

* 3G TD-SCDMA: 2.8Mbps DL, 2.2Mbps UL

* Embedded TCP/UDP

* GSM 3GPP Release 7:
- EDGE Multi-slot class 33(296Kbps DL, 236.8kbps UL)
- GPRS Multi-slot class 33(107Kbps DL, 85.6kbps UL)

* MUX: Basic Mode

* SMS: MO/MT Text and PDU Modes, cell broadcast

* Interfaces:
- SIM Card: 1.8V/2.8V
- 1 x USB 2.0
- 1 x USB 3.0
- 1 x UART
- PCM Voice
- I2C
- I2S
- EINT
- System Indicator
- A/D
- RTC
- MUX over UART1
- Multiple Profiles over USB


* Dimensions: 26.0×32.0×2.0 mm

* Drivers: Linux 2.6.18 above, Win 8.1/10, Android 4.2 above

* Approvals: RoHS, CCC, SRRC, NAL, CE, GCF
