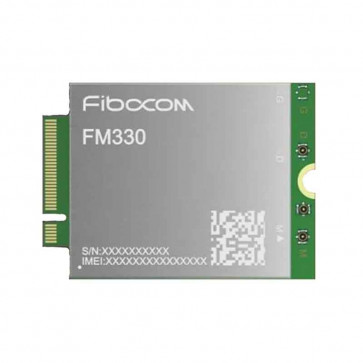

Fibocom FM330 5G R17 RedCap Module
* Fibocom 5G Wireless Module
* Chipset:MediaTek T300(6nm)
* Form factor: M.2
* Compliant with 3GPP R17 standard
* Support SA/NSA and Sub-6GHz
Availability: In stock
Fibocom FM330 5G RedCap Module Specifications:
* Product type: 5G NR Module
* Chipset:MediaTek T300(6nm)
* Form factor: M.2
* Compliant with 3GPP R17 standard
* Support SA/NSA and Sub-6GHz
* Frequency bands:
- 5G NR (Sub6): n1, n2, n3, n5, n7, n8, n20, n25, n28a, n28b, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
- 4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28(a&b), B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
- WCDMA: Band 1, 2, 4, 5, 8
- NR DL 4x4 MIMO: n1, n2, n3, n7, n25, n30, n38, n40, n41(full), n48, n66, n77, n78, n79
- LTE DL 4x4 MIMO: B1, B2, B3, B4, B7, B25, B30, B34, B38, B39, B40, B41(full), B42, B43, B48, B66
- UL 2x2 MIMO: n41, n77, n78, n79
- SRS: n41, n77, n78, n79, Support: 1T2R, 1T4R, 2T4R
- CBRS: B48
- HPUE: B41, n41, n77, n78, n79
* GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
* Operating Voltage: 3.315V ~ 4.4V, Typical 3.3V
* Operation Temperature: -10 ~ 55 ℃
* Storage Temperature: -40 ~ +85℃
* Size: 30*42*2.3mm
* TX Power
- NR & LTE: 23dBm
- WCDMA: 23.5 dBm
* RX Sensitivity: NR & LTE: -98dBm ~ 102dBm
* Downlink speeds up to 227Mbps, Uplink speeds up to 122Mbps
* Interfaces:
- USB3.1/3.0
- GPIO
- PCIe3.0
- USB2.0
- I2S
- UIM
* Antenna connectors: IPEX MHF-4
* Driver: Windows/Linux 4.1/Android 10.0
* Carriers: AT&T, Verizon, T-Mobile, Vodafone, Telefonica, Swisscom, DTAG, CMCC, CUCC, CTCC, Telstra, Optus, Docomo, KDDI, Softbank
* Regulatory/ Industry: GCF, PTCRB, CCC, CTA, SRRC, CE, IC, FCC, CBRS, JATE, TELEC, RCM
* Others: RoHS, Reach, HF, CB, UL
