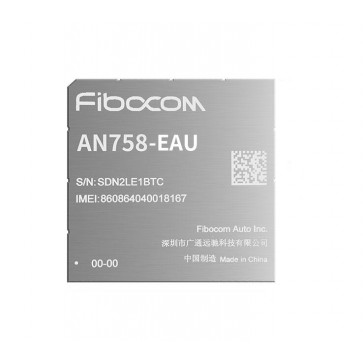

Fibocom AN758-EAU 5G Module

Fibocom AN758-EAU 5G Module Specifications：

* Product type: 5G Wireless Module

* Target Region: Europe

* Package : LGA

* Dimension(mm): 48.0x48.0x3.3

* 5G Sub-6: n1/3/5/7/8/20/28/38/40/41/77/78

* LTE FDD: B1/3/5/7/8/20/28/32

* LTE TDD: B38/40/41/42

* V2X: N/A

* WCDMA: B1/3/5/8

* GSM: 900/1800

* Operation mode: NSA&SA

* Antenna: 4+1(GPS)

* Power Supply: 3.4V~4.2V(Typical 3.8V)

* Operating Temp: -40°C ~ +85°C

* Data rates:
- NR SA: 2.1Gbps(DL)/580Mbps(UL)
- LTE: 1.2Gbps(DL)/200Mbps(UL)
- WCDMA(Mbps): 42(DL)/5.76(UL)
- GSM(Kbps): 296(DL)/236.8(UL)

* Functions:
- Voice:
- SMS: SMS over IP(IMS)
- Audio: ●
- FOTA: ●
- OS Drivers: Linux
- GNSS: GPS/GLONASS/Galileo/BeiDou
- Openlinux: ●
- A/B Dual system: ●
- C-V2X: NA
- QDR3.0: Optional
- ecall: ●
- eSIM: Optional
- Gigabit Ethernet: Optional
- RTK: ●
- Temperature Management: ●

* Security: Security
- Trustzone: ●
- Secure Boot: ●
- SE-Linux: ●

* Drive: RNDIS/ECM/QMI_WWAN/USB Serial Driver

* Interfaces:
- USB: USB3.0 & USB2.0
- PCIe: PCIe3.0
- UART: ●
- SPI: ●
- ADC: ●
- GPIO: ●
- I2C: ●
- SDIO: ●
- (U)SIM: ●
- I2S: ●
- PCM: ●
- RGMII: ●
- SMGII: ●

* Certification
- Regulation: CE*/GCF*
