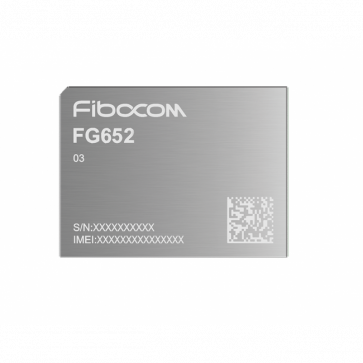

Fibocom FG652-EAU 5G NR Module

Fibocom FG652-EAU is a new 5G wireless module supporting 5G dual mode：SA and NSA. Fibocom FG652-EAU adopts LGA package in the dimensions of 30*40*26 mm. It can switch in 5G NR, 4G LTE and 3G WCDMA networks. Fibocom FG652-EAU has built-in rich network protocols, integrates multiple industry standards (including UART, USB3.0/USB2.0, GPIO, I2C, PCIe Gen 2, SDIO, SPI, I2S, PCM, USIM), supports a variety of drivers and Software functions (such as Linux/Android/Windows operating systems), which greatly expand the scope of its application in the 5G industry.

Fibocom FG652-EAU 5G module Specifications:

* Product type: 5G Cellular Module

* Form factor: LGA package

* Platform: UNISOC Tanggula V510

* Support 5G SA/NSA dula-mode and NR CA

* Frequency Bands：
- 5G NR (Sub6): n1/3/5/7/8/20/28/38/40/41/75/76/77/78/79
- 4G LTE: FDD B1/3/5/7/8/20/28/32, TDD B38/40/41/42/43
- WCDMA: B1/5/8

* MIMO
- DL 4*4 MIMO: n1/3/5/7/20/28/38/40/41/75/76/77/78/79
- UL 2*2MIMO: n41/77/78/79
- LTE MIMO: LTE DL 4*4MIMO: B1/3/5/7/8/20/28/32/38/40/41/42/43

* Dimensions: 30x40x2.6mm

* Operating Voltage : 3.2V~4.6V, Typical 3.8V

* Operating Temperatures: -30~+75°C

* AT Command Set: 3GPP TS 27.007 and 27.005,proprietary FIBOCOM AT commands

* Antenna : 4 Antennas

* GNSS: N/A

* Support: FOTA/VoLTE/Audio/eSIM(optional)

* SIM: SMS over IP(IMS)

* OS Drivers: Windows/Linux/Android

* Data rates:
- NR SA Peak Rate: DL 1.92Gbps/UL 630Mbps
- NR ENDC Rate: DL 1.92Gbps/UL 380Mbps
- LTE DL 453Mbps/UL 150Mbps
- WCDMA: DL 42Mbps/UL 11Mbps

* Interfaces:
- USB3.0 & USB2.0
- PCIe Gen2
- UART
- SPI
- GPIO
- I2C
- SDIO
- UIM
- I2S
- MIPI
- RGMII: N/A

* Certifications:

* Carriers:
