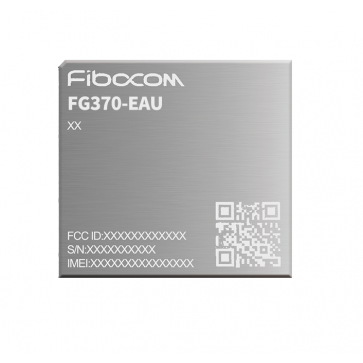

Fibocom FG370-EAU 5G Sub-6Ghz LGA Module

Fbocom FG370-EAU 5G module is a new 5G wireless module for Asia/Europe/Australia Market, which supports both 5G SA and NSA network architectures with faster transmission speed, better loading capacity, and lower network latency.

Fibocom FG370-EAU Module is equipped with MTK T830 chip, adopting 4nm manufacturing process. It supports 5G NR sub-6GHz dual-carrier convergence (3CC CA) 300MHz frequency. Fibocom FG370 has a built-in 4-core ARM Cortex-A55 2.2 GHz CPU, supporting two 10Gbps USXGMII interfaces, a variety of LAN port configurations, and a variety of Wi-Fi configurations, providing a complete set of CPE, gateway and other complete machine solutions. Fibocom FG370 is mainly aimed at intelligent terminals such as fixed wireless access (FWA), CPE, gateway, router, industrial monitoring terminal and telemedicine terminal.

Fibocom FG370-EAU 5G module Specifications:

* Product type: 5G cellular module

* Target Region: Asia, Europe, Australia

* Package : LGA

* Dimension(mm): 41x44x2.75

* 5G Sub-6: n1/3/5/7/8/20/28/38/40/41/75/76/77/78/71(optional)

* LTE FDD: B1/3/5/7/8/20/28/32/71(optional)

* LTE TDD : B38/40/41/42/43/46(LAA,optional)

* WCDMA: B1/5/8

* Operation mode: NSA&SA

* Antenna: 6+1/8+1(GNSS)

* Operating Voltage: 3.3V~4.4V,Typical 3.8V

* Operating Temp.: -30°C - +75°C

* NR MIMO
- DL 4×4MIMO: n1/3/7/38/40/41/75/76/77/78
- UL 2×2MIMO: n41/77/78

* LTE MIMO: DL 4×4MIMO: B1/3/7/32/38/40/41/42/43

* NR SA(Mbps): 7010(DL)/1250(UL)

* NR ENDC(Mbps): 5670(DL)/836M(UL)

* LTE(Mbps): 1600(DL)/211(UL)

* WCDMA(Mbps): 42(DL)/11(UL)

* Functions
- Voice: VoLTE
- SMS: SMS over IP(IMS) & SMS over NAS
- Audio: ●
- FOTA: ●
- OS Drivers: Linux
- GNSS: GPS/GLONASS/Galileo/BeiDou/QZSS

* Interfaces
- USB: USB3.1
- PCle: PCIe3.0
- UART: ●
- SPI: ●
- GPIO: ●
- I2C: ●
- SDIO: ●
- UIM: ●
- I2S: ●
- MIPI: ●
- RGMII: SGMII/HSGMII

* Certification
- Regulation: JATE/TELEC
- Operator: DoCoMo
- Industry: N/A
