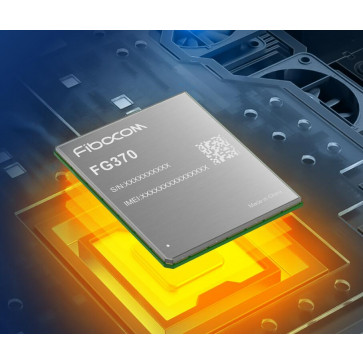

Fibocom FG370 5G Sub-6GHz Module

Fibocom FG370 is a new 5G wireless module Powered by the newly-launched MediaTek T830 platform. It's planned to bring enhanced mobile broadband, low latency, and ultra-reliable 5G Fixed Wireless Access (FWA) connectivity solution for global operators.

Fibocom FG370 module is compliant with 3GPP Release 16 (R16) standards and it enables lightning-fast 5G speed experience with up to 7.01Gbps on the downlink and 2.5Gbps on the uplink theoretically. Coming with a quad-core Arm Cortex-A55 CPU, FG370 supports 4CC CA (Carrier Aggregation) and up to 300MHz of spectrum, as well as 2CC CA and up to 200MHz of spectrum, which improves the utilization of spectrum resources and ensures an extended 5G coverage. Supporting 5G standalone network (SA) and non-standalone (NSA) network architectures, the module is also backward compatible with LTE-TDD, LTE-FDD and WCDMA network standards.

In addition, Fibocom FG370 supports 8RX (Receive Antennas), enhancing downlink speed, spectral efficiency and coverage quality. The module also supports Power Class 1.5 (PC1.5) High Power User Equipment (HPUE), which allows a maximum transmit power of up to 29dBm, 6dB higher than that of PC3, and 3dB higher than that of PC2, significantly increasing uplink speed and extending uplink coverage. With enhancements in terms of uplink and downlink speed and coverage, FG370 can provide a better user experience while offering seamless 5G connectivity for FWA.

Fibocom FG370 can support enhanced connectivity solutions, including Dual-band 2×2 Wi-Fi 7 for MiFi (BE6500) and Tri-band 4×4 Wi-Fi 7 for CPE (BE19000). These solutions feature new Wi-Fi 7 capabilities such as 160MHz/ 320MHz bandwidth, 6GHz frequency band, 4096 QAM, as well as Multi-Link Operation (MLO). The module also supports wired network deployment, allowing maximum 10Gb Ethernet, satisfying different application requirements.

With a rich extension of interfaces including 10GbE USXGMII/ PCI-Express/ USB 3.2, plus PCM/SPI for connection to external SLIC for RJ11 phone ports, FG370 seamlessly enables a wide range of IoT applications, providing high-speed 5G experience for customers. The module also integrates MediaTek’s 5G UltraSave technologies to optimize energy efficiency for 5G connections, especially 5G MiFi.

Fibocom FG370 5G Module Specifications:

* Product type: 5G wireless module

* Chipset: MediaTek T830 platform

* 5G Dual mode: SA/NSA, Sub-6Ghz

* 5G Download speeds up to 7.01Gbps

* Compliant with 3GPP Release 16 (R16) standards

* Support dual-band 2×2 Wi-Fi 7 for MiFi (BE6500) and Tri-band 4×4 Wi-Fi 7 for CPE (BE19000)

* Supports 4CC CA and up to 300MHz of spectrum

* More detail specs will be updated soon...
