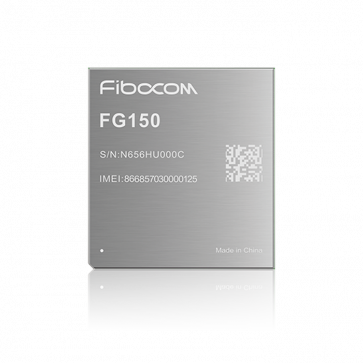

Fibocom FG150-AE 5G Sub-6GHz Wireless LGA Module

Fibocom FG150-AE 5G module Specifications:

* Product type: 5G Cellular Module

* Brand: Fibocom

* Package: LGA

* Support LTE: Cat 20 and above

* Support 4G LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28/B32

* Support 4G LTE TDD: B34/B38/B39/B40/B41/B42/B43**

* Support 3G WCDMA: B1/B2/B3/B5/B8

* 5G Operation mode: NSA & SA

* NR MIMO:
- DL 4 x 4 MIMO: n1, n3, n7,n38, n41, n78, n79
- UL 2 x 2 MIMO: n41, n78, n79

* LTE MIMO:
- DL 4 x 4 MIMO: B1, B3 ,B7, B32, B34, B38, B39, B40, B41, B42
- UL 1 x 1 MIMO

* Downlink:
- NR sub6: 4 x 4 MIMO 256QAM 1CC(4 layers)
- LTE: 4 x 4 MIMO 1024QAM 7CC(6CC 24 layers)
- NR sub6: 2 x 2 MIMO 256QAM
- LTE: 1 x 1 MIMO 256QAM

* Antenna: 6 or 8 Optional +1(GPS)

* Interfaces
- PCIe: PCIe 3.0
- USB3.1:x 1
- UART
- SPI
- GPIO:
- I2C:
- SDIO
- UIM:
- I2S:
- MIPI:
- RGMII

* GNSS: GPS/GLONASS/Galileo/Beidou

* Power Supply: 3.3V~4.4V(Typical 3.8V)

* Operating Temp.:-30℃~+75℃

* OS Drivers: Linux 4.1**/Android 9.0**

* Other Features
- Voice: VoLTE
- SMS: SMS over IP(IMS)
- Audio
- FOTA

* Approvals: RoHS*/Reach*/HF*/CCC*/SRRC*/CTA*/CE*/GCF*/RCM*/KCC*/Geteki*/CMCC*/CTCC*/CUCC*/VDF*/DT*/Optus*/Telstra*/Telefonica*/Swisscom*

* Dimension: 41.00 x 44.00 x 2.75(mm)
