Fibocom FM190W-GL 5G Sub-6GHz and mmWave R17 Module

Fibocom FM190W-GL is a new 5G Sub-6GHz and mmWave Module which is compliant with the 3GPP Release 17 standard. Based on the Snapdragon X75, which is equipped with Qualcomm®5G AI Processor Gen 2 and is the world's first modem-RF system with a dedicated AI tensor accelerator. Powered by Snapdragon X75 and a quad-core A55 CPU, Fibocom FM190W-GL 5G module provides superior 5G experience especially for FWA applications, offering optimized power consumption and multiple Wi-Fi 7 selections.

Compliant with 3GPP Release 17 standard, Fibocom FM190W-GL is in M.2 form factor and pin compatible with Fibocom FM170/FM160/FM150 5G module series. And it's designed to provide Open CPU solution with rich interfaces such as PCIe, Ethernet, USXGMII, UART, I2S, USB 3.1 and UIM. Featuring on the fast-growing 5G FWA market, Fibocom FM180W-GL offers a comprehensive module solution incombination with the latest Wi-Fi 7 technology, including Tri-band Wi-Fi 7 for CPE (BE19000) and Dual-band Wi-Fi 7 for MiFi (BE5800). Benefiting from the Wi-Fi 7 capabilities such as 160MHz/320MHz bandwidth, 6GHz frequency band, 4096QAM,as well as Multi-Link Operation (MLO), ensuring the Wi-Fi network coverage and betterspeed experience in home, enterprise and manufacturing plants.

By leveraging the spectrum resources for a broader reach of faster speeds, the FM190W-GL module supports Sub-6 GHz and mmWave dual-connectivity, as well as NR 10CA with up to 1000MHz bandwidth in the mmWave frequency band, significantlyboosting the maximum downlink speed of up to 10Gbps.

Fibocom FM190W-GL also supports wired network deployment, allowing maximum 10Gb Ethernet, satisfying different application requirements. Fibocom FM190W-GL series also supports a variety of global operating systems, including OpenWRT and RDK-B, to further help customers reduce time to the market.

Fibocom FM190W-GL 5G module Specifications:

* Product type: 5G cellular module

* Form factor: M.2

* Compliant with 3GPP R17 Standard

* Platform/chipset: Qualcomm Snapdragon X75

* Support 5G mmWave and Sub-6GHz
- Sub-6: n1/2/3/5/7/8/12/13/14/18/20/25/26/29/30/34/38/39/40/41/46/48/53/66/67/68/70/71/75/76/77/78/79/90/91/92/93/94
- mmWave: n257/258/260/261
- LTE FDD: B1, 2/25, 3, 4/66, (5/18/19/26), 7, 8, 12/17, 13, 14, 20, 28, 30, 29(Rx),32(Rx), 70, 71, 75(Rx), 76(Rx)
- LTE TDD: B34/38/39/40/41/48/46/53
- WCDMA: B1/2/3/4/5/6/8/9/19
- CDMA: B0/1/10

* Software Support: OpenWRT/RDK-B

* Operation mode: NSA&SA

* Antenna: 4

* Operating Voltage: 3.135V~4.4V, Typical 3.8V

* Operating Temp.: -40°C - +85°C

* Key functions：
- FR1+FR2：10Gbps(DL) / 3.38Gbps(UL)
- NR SA: 1024 QAM 7.7Gbps(DL) / 900Mbps(UL)
- NR NSA: 1024 QAM 5.95Gbps(DL) / 555Mbps(UL)
- LTE: 2.0Gbps(DL) / 211Mbps(UL)
- WCDMA: 42Mbps(DL) / 5.76Mbps(UL)

* Voice: VoLTE & VoNR(Optional)

* SMS: SMS over IP(IMS)

* Audio ●

* FOTA ●

* OS Drivers: Windows/Linux/Android

* GNSS: GNSSGPS/GLONASS/Galileo/BeiDou/QZSS/NavIC

* Interfaces:
- USB USB3.1/3.0/2.0
- PCle PCIe4.0/3.0
- UIM USIM x2 (SIM2 reserve built-in eSIM)
- I2S ●
- GPIO ●

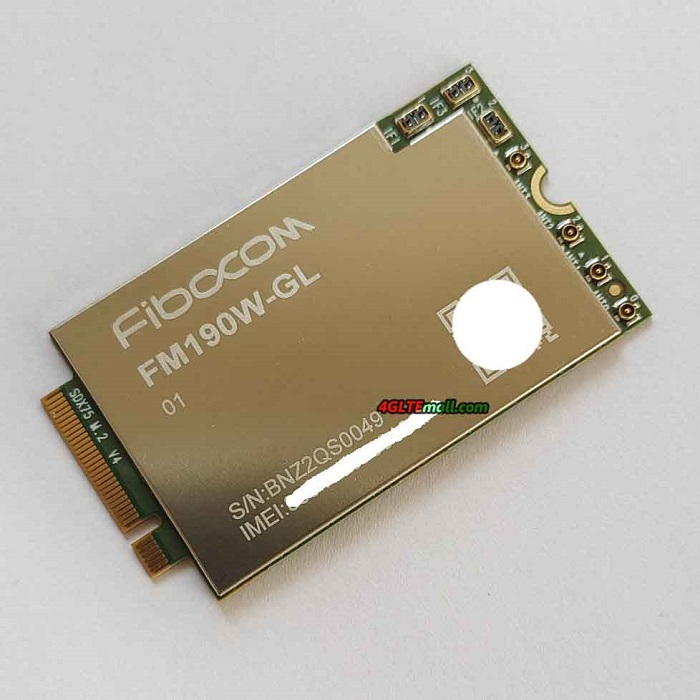

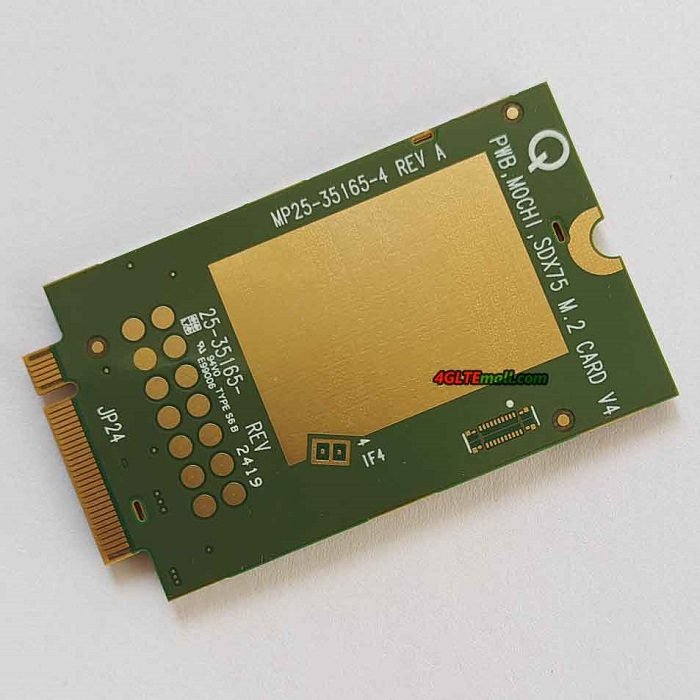

Fibocom FM190W-GL 5G Module Images:
