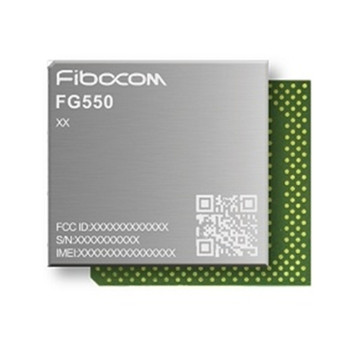

Fibocom FG550-NA 5G Sub-6GHz Module

Fibocom FG550-NA is a high-performance 5G Sub-6GHz communication module designed specifically for the North American region. It is part of the Fx550 series, built on the Samsung Exynos Modem platform using a 4nm process to provide efficient, high-speed connectivity for applications like Fixed Wireless Access (FWA), industrial gateways, and high-end IoT terminals.

Fibocom FG550-NA 5G Module Specifications:

* Chipset: Samsung Exynos (S5300) with a single-core ARM Cortex-A55 processor (1.5 GHz).

* Form Factor: LGA package (Surface Mount).

* Dimensions: 45.0 mm x 48.0 mm x 2.75 mm.

* Operating Voltage: 3.3V to 4.4V (Typical 3.8V).

* Operating Temperature: -30°C to +75°C (Extended: -40°C to +85°C ).

Network & Data Transmission
------------------------------------------------
* Cellular Standards: 5G NR SA/NSA, 4G LTE-FDD/TDD, and 3G WCDMA.

* 3GPP Release: Release 16 compliant.

* Peak Data Rates:
- 5G NSA: Up to 6.47 Gbps (Download) / 1.25 Gbps (Upload).
- 5G SA: Up to 4.67 Gbps (Download) / 1.25 Gbps (Upload).

* Carrier Aggregation: Supports up to 5CC NR CA in SA mode (200MHz bandwidth) and NR 2CC + LTE 5CC in NSA mode.

* MIMO: Supports 4x4 MIMO for downlink and 2x2 MIMO for uplink.

Frequency Bands
------------------------------------------------
* 5G NR Sub-6GHz:

* 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B20, B26, B28, B32, B66, B67, B71.

* 4G LTE TDD: B38, B40, B41, B42, B43, B48.

* 3G WCDMA: B1, B5, B8.

Interfaces & Additional Features
------------------------------------------------
* Hardware Interfaces: PCIe 3.0 (2-lane), USB 3.1/2.0, UART, I2C, SPI, and GPIO.

* GNSS Support: GPS, GLONASS, BeiDou, Galileo, and QZSS (specifically L1 GPS for EAU variant).

* Software Drivers: Compatible with Linux, Android, and Windows operating systems.

* Enhanced Services: Supports VoLTE, SMS (over IP and NAS), and DFOTA (Delta Firmware Over-the-Air).
